Oil Pump: Installation

Install the O-ring.
NOTE:
- Use new O-rings.
- Apply CVTF to the O-ring.
Fig 1: CVTF Applying To O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Install the plate and the oil pump.
NOTE: Apply CVTF to the bolt.

Tightening torque:

8.5 N.m (0.9 kgf-m, 6.3 ft-lb)

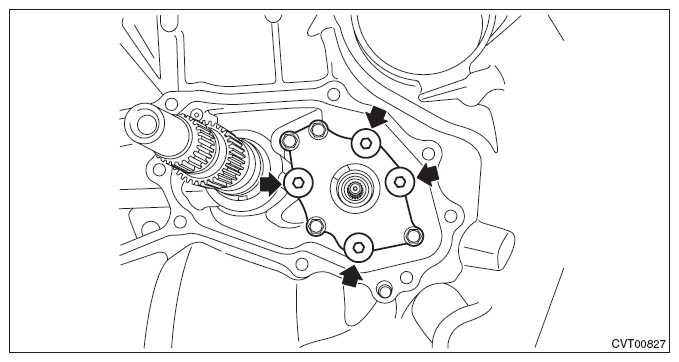

Fig 2: Locating Oil Pump Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pump chain cover. Ref. to INSTALLATION , Oil Pump Chain.
Install the torque converter assembly. Ref. to INSTALLATION , Torque Converter Assembly.
Install the transmission assembly to the vehicle. Ref. to INSTALLATION , Automatic Transmission Assembly.
