Reduction Driven Gear: Installation

  1. Install the reduction driven gear assembly and spacer oil.

    Tightening torque:

    17 N.m (1.7 kgf-m, 12.5 ft-lb)

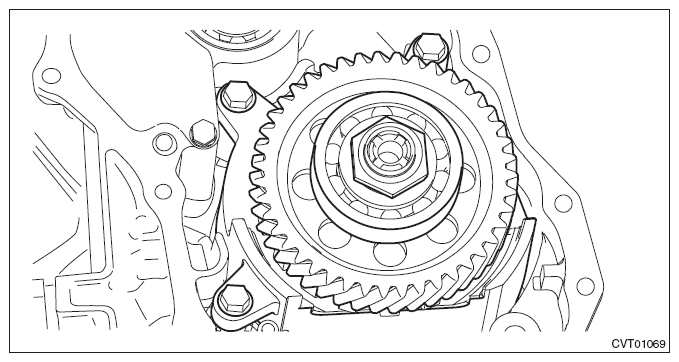

    Fig 1: Reduction Driven Gear Assembly
    G10218734Courtesy of SUBARU OF AMERICA, INC.
  2. Select the transfer drive gear shim. Ref. to ADJUSTMENT , Reduction Drive Gear.
  3. Install the parking pawl. Ref. to INSTALLATION , Parking Pawl.
  4. Attach the selected transfer drive gear shim to extension case with Vaseline.
  5. Install the transfer driven gear assembly. Ref. to INSTALLATION , Transfer Driven Gear.
  6. Install the transfer clutch assembly. Ref. to INSTALLATION , Transfer Clutch.
  7. Install the extension case. Ref. to INSTALLATION , Extension Case.
  8. Install the transmission assembly to the vehicle. Ref. to INSTALLATION , Automatic Transmission Assembly.
