Reverse Brake Assembly: Removal

1. Remove the transmission assembly. <Ref. to REMOVAL , Automatic Transmission Assembly.>
2. Remove the air breather hose. <Ref. to REMOVAL , Air Breather Hose.>
3. Remove the control valve body. <Ref. to REMOVAL , Control Valve Body.>
4. Remove the transmission harness. <Ref. to REMOVAL , Transmission Harness.>
5. Remove the turbine speed sensor. <Ref. to REMOVAL , Turbine Speed Sensor.>
6. Remove the secondary speed sensor. <Ref. to REMOVAL , Secondary Speed Sensor.>
7. Remove the primary speed sensor. <Ref. to REMOVAL , Primary Speed Sensor.>
8. Remove the inhibitor switch. <Ref. to REMOVAL , Inhibitor Switch.>
9. Remove the extension case. <Ref. to REMOVAL , Extension Case.>
10. Remove the transfer clutch assembly. <Ref. to REMOVAL , Transfer Clutch.>
11. Remove the transfer driven gear assembly. <Ref. to REMOVAL , Transfer Driven Gear.>
12. Remove the parking pawl. <Ref. to REMOVAL , Parking Pawl.>
13. Remove the reduction driven gear assembly. <Ref. to REMOVAL , Reduction Driven Gear.>
14. Remove the oil pan and oil strainer. <Ref. to REMOVAL , Oil Pan and Strainer.>
15. Remove the transmission control device. <Ref. to REMOVAL , Transmission Control Device.>
16. Remove the transmission case. <Ref. to REMOVAL , Transmission Case.>
17. Remove the reduction drive gear. <Ref. to REMOVAL , Reduction Drive Gear.>
18. Remove the primary pulley, secondary pulley and variator chain. <Ref. to REMOVAL , Primary Pulley and Secondary Pulley.>
19. Remove the manual valve assembly and separator plate.
    Fig 1: Locating Manual Valve Assembly And Separator Plate Bolts

    Courtesy of SUBARU OF AMERICA, INC.
20. Remove the oil guide and lubrication pipe.

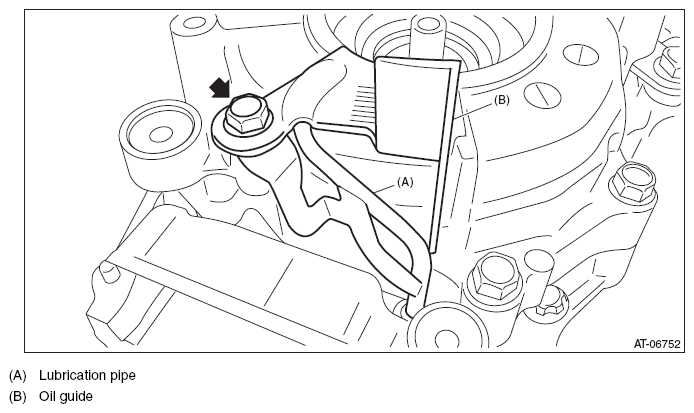

    Fig 2: Locating Oil Guide And Lubrication Pipe Bolt

    Courtesy of SUBARU OF AMERICA, INC.
21. Remove the O-ring from lubrication pipe.
    Fig 3: Locating O-Ring At Lubrication Pipe

    Courtesy of SUBARU OF AMERICA, INC.
22. Remove the reverse brake assembly.
    Fig 4: Reverse Brake Assembly And Bolts

    Courtesy of SUBARU OF AMERICA, INC.
23. Remove the O-rings.

Fig 5: Locating O-Rings

Courtesy of SUBARU OF AMERICA, INC.
