Front Differential Assembly: Installation

  1. Install the front differential assembly to the converter case.
    NOTE: Be careful not to damage the inside of the case (especially the mating surface of the differential side retainers).
  2. Temporarily install the differential side retainers using ST.

    ST 18658AA020 WRENCH COMPL RETAINER

    G06654708Courtesy of SUBARU OF AMERICA, INC.
  3. Adjust the backlash of the front differential. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Front Differential Assembly>ADJUSTMENT .
  4. Inspect and adjust the tooth contact. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Drive Pinion Shaft Assembly>ADJUSTMENT .
  5. Remove the differential side retainers and install the O-rings and oil seals. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Front Differential Assembly>ASSEMBLY>SIDE RETAINER .
    NOTE:
    • Record how many turns were needed to remove.
    • Use new O-rings and oil seals.
  6. Install the differential side retainers using ST.
    NOTE: When attaching, turn the differential side retainer by the same number of turns it took to remove, and align the marks.

    ST 18658AA020 WRENCH COMPL RETAINER

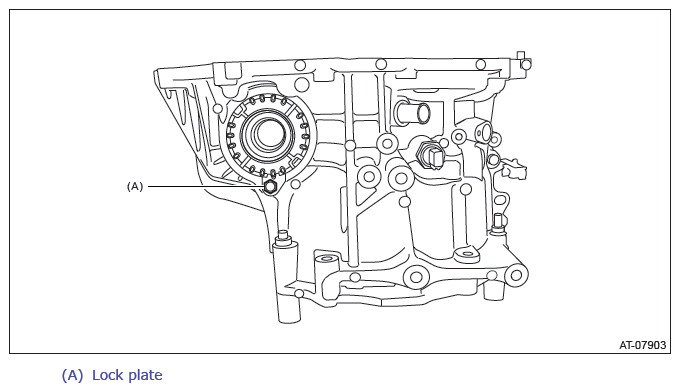

  7. Install the lock plate.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    G12410942Courtesy of SUBARU OF AMERICA, INC.
  8. Install the drive pinion shaft assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Drive Pinion Shaft Assembly>INSTALLATION .
  9. Install the primary pulley, secondary pulley and variator chain. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Primary Pulley and Secondary Pulley>INSTALLATION .
  10. Install the transmission case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Transmission Case>INSTALLATION .
  11. Install the forward clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Forward Clutch Assembly>INSTALLATION .
  12. Install the intermediate case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Intermediate Case>INSTALLATION .
  13. Install the transfer reduction driven gear assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Transfer Reduction Driven Gear>INSTALLATION .
  14. Install the transfer clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Transfer Clutch>INSTALLATION .
  15. Install the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Rear Drive Shaft>INSTALLATION .
  16. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Extension Case>INSTALLATION .
  17. Install the transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Transmission Harness>INSTALLATION .
  18. Install the control valve body and oil pan. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Control Valve Body>INSTALLATION .
  19. Install the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Air Breather Hose>INSTALLATION .
  20. Install the transmission assembly to the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Automatic Transmission Assembly>INSTALLATION .
