Extension Case Oil Seal: Replacement

Release the parking brake.
Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Release the shift lock using a screwdriver, etc. and shift the select lever to the "N" range.

Courtesy of SUBARU OF AMERICA, INC.
Remove the propeller shaft. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>PROPELLER SHAFT>REMOVAL
Remove the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL .

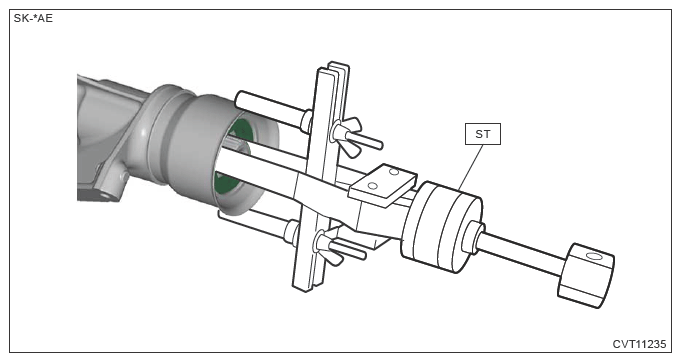

Using the ST, remove the extension case oil seal.
Preparation tool:

ST: PULLER ASSY (398527700)

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, install a new extension case oil seal.
NOTE: Apply CVT to the oil seal lip and peripheral surface.

Preparation tool:

ST: OIL SEAL INSTALLER (498057300)

Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>INSTALLATION .
Install the propeller shaft. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>PROPELLER SHAFT>INSTALLATION .
Shift the select lever to "P range".
Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Apply the parking brake.
Check the CVTF level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF>INSPECTION .
