Seat Common Operation Procedure

CAUTION:

Do not confuse the harness routing of the side airbag harness and the front seat belt INN harness, etc. Assembling with harnesses improperly routed may cause the harness to get caught and short out.

If the hook spring of the backrest frame assembly is deformed or comes off due to the deformation, replace the flat mat & hook spring assembly with a new part.

Courtesy of SUBARU OF AMERICA, INC.

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM", Refer to AIRBAG SYSTEM>General Description>CAUTION .

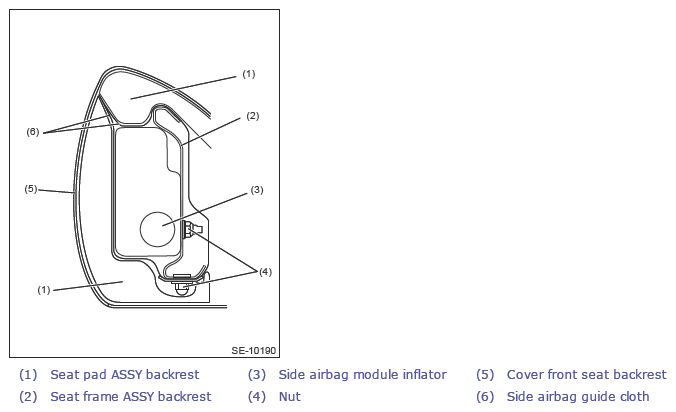

Make sure that the side airbag module is installed as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

Besides, if the front seat backrest cover is not installed securely, the side airbag may not be activated properly, therefore keep strictly to the following procedures.

Do not reuse the mounting nuts of the airbag module. Always replace with a new specified nut.
Be careful not to stain or damage the front seat backrest cover during assembly.
Do not reuse the hog ring and hang wire.
Secure the hog ring using hog ring pliers.
Install the hog rings to the specified points securely and make sure that there is no wrinkle or twisting on the front seat backrest cover.
Some seat surfaces use clip suspenders. If the clip suspender is damaged or its engaging force is not sufficient, always replace the clip suspender with a new part.

Check the clip suspender, and if it is damaged or its engaging force is not sufficient, perform the following procedure to replace the clip suspender with a new part.

Mark the original position on which the clip suspender is installed before replacing it.

Courtesy of SUBARU OF AMERICA, INC.

Using a pair of nippers, break the clip suspender to remove.

Install a new clip suspender on the marked position.

CAUTION: If the clip suspender position is misaligned, seat surface wrinkle may occur.

Courtesy of SUBARU OF AMERICA, INC.

Make sure that there is no foreign matter on side airbag module and seat cushion airbag module.

Assemble the seat cover.

Adjust so that the left and right clearances between wire and seat pad become equal, and mark the seat pad.

Courtesy of SUBARU OF AMERICA, INC.

Mark the center of the wire on the pad side to which the hog ring is attached.

Courtesy of SUBARU OF AMERICA, INC.

Insert the wire into the seat cover, and align the wire with the position marked in step (1).

Courtesy of SUBARU OF AMERICA, INC.

Mark the wire on the seat cover side according to the markings on the seat pad.

Courtesy of SUBARU OF AMERICA, INC.

Perform steps (1) to (4) for all sections to which the hog rings are attached.

Secure the hang wire in numerical order using new hog rings and clip suspenders.

Cushion cover surface side

Except for 10-WAY power type

Courtesy of SUBARU OF AMERICA, INC.

10-WAY power type

Courtesy of SUBARU OF AMERICA, INC.

Backrest cover surface side

Courtesy of SUBARU OF AMERICA, INC.

Make sure that all hog rings, clip suspenders and plastic fasteners (a) are attached securely.

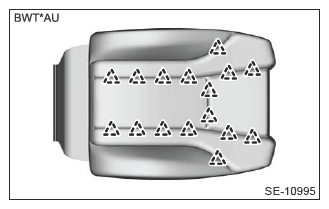

Cushion cover surface side

Except for 10-WAY power type (without ventilation)

Courtesy of SUBARU OF AMERICA, INC.

10-WAY power type (without ventilation)

Courtesy of SUBARU OF AMERICA, INC.

Except for 10-WAY power type (with ventilation)

Courtesy of SUBARU OF AMERICA, INC.

10-WAY power type (with ventilation)

Courtesy of SUBARU OF AMERICA, INC.

Cushion cover back side

Courtesy of SUBARU OF AMERICA, INC.

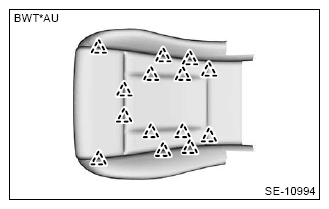

Backrest cover surface side

Courtesy of SUBARU OF AMERICA, INC.

Backrest cover back side

Without ventilation

Courtesy of SUBARU OF AMERICA, INC.

With ventilation

Courtesy of SUBARU OF AMERICA, INC.

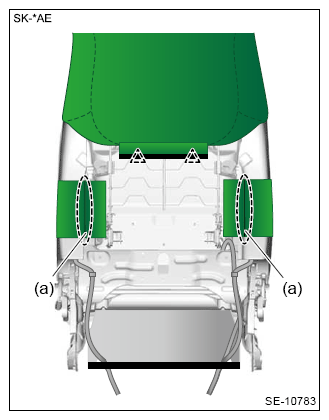

Tighten the fastener at the back side of backrest assembly.

Fasten the plastic fastener at the back side (bottom) of backrest assembly.

Courtesy of SUBARU OF AMERICA, INC.

Assemble remaining parts in the reverse order of disassemble.

NOTE:

Check the shape and front/rear directions before assembling the headrest bushing.

Courtesy of SUBARU OF AMERICA, INC.

When installing the front seat belt INN, follow the procedures described in the SEAT BELT instructions. Refer to SEAT BELT SYSTEM>Front Seat Belt>INSTALLATION .
Install the backrest assembly and seat cushion assembly in the following procedure.
1. Temporarily tighten the four reclining hinge bolts.
2. Place the backrest in the most upright position.
3. Tighten the reclining hinge bolts in order from (1) to (4) two or three times, until they reach the specified torque.

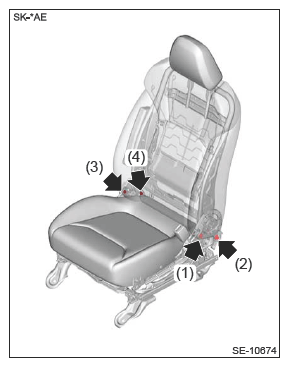

Fig 1: Backrest And Seat Cushion Assembly Bolts Tightening Sequence

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Refer to "COMPONENT" of "General Description". Refer to SEATS>General Description>COMPONENT>FRONT SEAT .

If any wrinkles are found after the assembly of the seat cover, finish the seat cover with iron.

Place the wet towel on wrinkles.

Courtesy of SUBARU OF AMERICA, INC.

Touch up with warm iron.

CAUTION: Keep moving the iron, otherwise the seat cover surface can be damaged.

NOTE: This method is available for genuine leather, synthetic leather, cloth, etc.

Courtesy of SUBARU OF AMERICA, INC.

Install connectors located under the front seat. Refer to SEATS>FRONT SEAT>ASSEMBLY>CONNECTOR & HARNESS .
Install the seat assembly. Refer to SEATS>Front Seat>INSTALLATION .
CAUTION: For the passenger's seat, be sure to perform [Rezeroing] for the occupant detection system after installing the seat assembly. Refer to AIRBAG (DIAGNOSTICS)>Rezero .
