Transfer Driven Gear: Removal

  1. Remove the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSFER CLUTCH>REMOVAL .

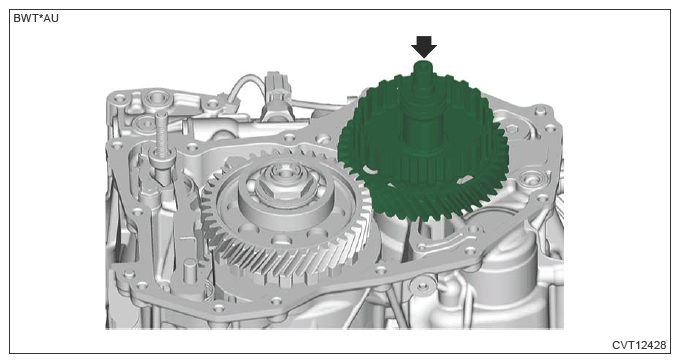

  2. Remove the transfer driven gear.
    G13950624Courtesy of SUBARU OF AMERICA, INC.
