Electric Power Steering Gearbox: Removal

CAUTION:
  • The power steering control module continues to operate after the engine stops and calculates the temperature in the control module. Therefore, before starting service of the power steering system which requires disconnection of the connector, stop the engine and allow approx. 30 minutes until the control module becomes cold.
  • Be careful not to let any foreign matter (dust, water, oil, etc.) enter into the power steering control module connector when removing or installing. If a foreign matter enters, completely remove it.
  1. Remove the ground terminal from battery sensor Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  3. Remove the under cover front Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  4. Remove the under guard front. (H4DOTC model) Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  5. Remove the crossmember support rear and the crossmember support front Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
  6. Remove the front exhaust pipe. (H4DO model) Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL
  7. Remove the center exhaust pipe (rear). (H4DOTC model) Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR) .
  8. Remove the stabilizers. Ref. to FRONT SUSPENSION>STABILIZER>REMOVAL>STABILIZER .
  9. Disconnect the tie-rod end. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>TIE-ROD END>REMOVAL
  10. Remove the universal joint assembly steering. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>UNIVERSAL JOINT>REMOVAL .

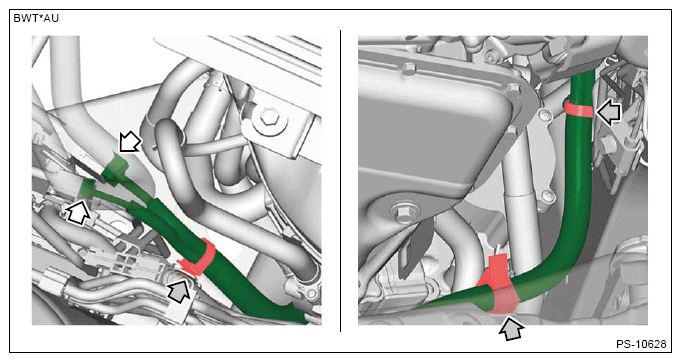

  11. Disconnect the power steering harness connector and remove the harness clamp.
    G13951533Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the steering gearbox assembly from the crossmember COMPL front.
    CAUTION: When lowering the transmission jack, make sure that the tie-rod end and the drive shaft boot do not interfere. The drive shaft boot may be damaged.
    1. Support the steering gearbox assembly from the bottom side using a transmission jack.

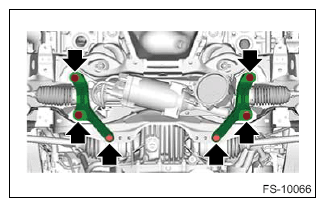

    2. Remove the bolts securing the steering gearbox assembly and stiffener to the crossmember COMPL front.
      G13951534Courtesy of SUBARU OF AMERICA, INC.
    3. Lower the transmission jack slowly, and lower the steering gearbox assembly.
