Section 30 (Engine Intake System (Induction)): General Description: Component: INTERCOOLER

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

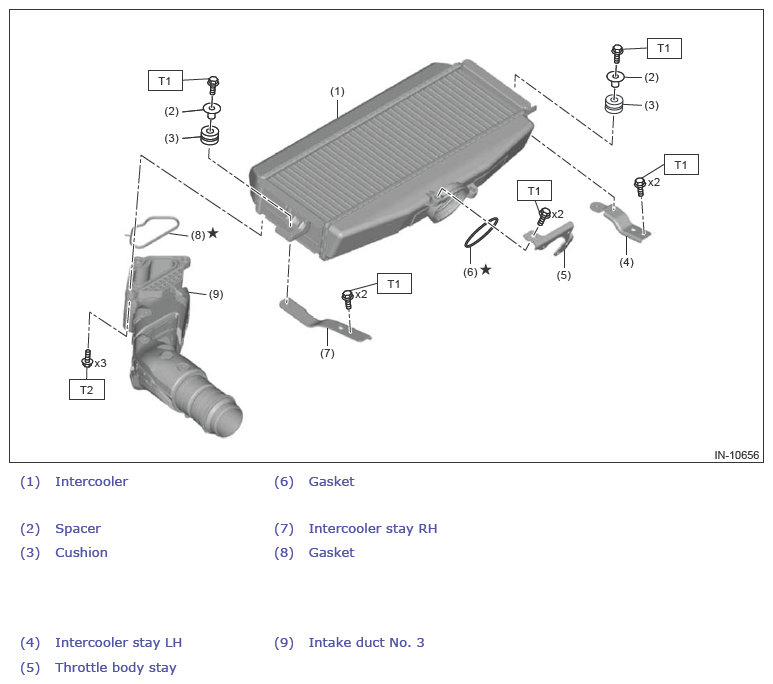

Fig 1: Intercooler Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>ASSEMBLY .
