Reverse Check System: Installation

Insert the reverse lock plunger.
Install the reverse check plunger, reverse check spring, gasket and plug in order.
NOTE: Use a new gasket.

Tightening torque:

41 N.m (4.2 kgf-m, 30.2 ft-lb)
Install the return spring and reverse check shaft.

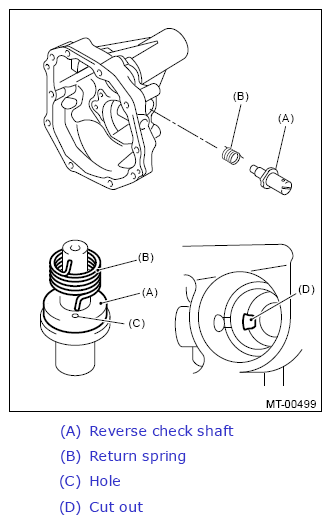

NOTE: Confirm that the end of the spring matches the hole of the reverse check shaft and the cut out of the extension case.

Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap ring.
Attach ST1 to the reverse check shaft. Install the new oil seal, and push it in using ST2.
ST1 18671AA000 OIL SEAL GUIDE

ST2 18657AA010 INSTALLER

Courtesy of SUBARU OF AMERICA, INC.
Insert the reverse check lever, and turn the reverse check shaft until the reverse check plunger is first pushed in.

Courtesy of SUBARU OF AMERICA, INC.
Match the hole of the reverse check lever and the reverse check shaft, and attach the straight pin.
NOTE: Use a new straight pin.

Courtesy of SUBARU OF AMERICA, INC.
Check that the reverse check is operating correctly. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>REVERSE CHECK SYSTEM>INSPECTION .
Install the extension case. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>EXTENSION CASE>INSTALLATION .
Install the manual transmission assembly to the vehicle. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>MANUAL TRANSMISSION ASSEMBLY>INSTALLATION .
