Sunroof Assembly: Installation

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
For installation of the stereo camera cover assembly, refer to "INSTALLATION", "Stereo Camera" in the "EyeSight" service information and observe the precautions for installation. Ref. to EYESIGHT>STEREO CAMERA>INSTALLATION .
Be careful not to snag the harness.

Install the tube drain.
Install the sunroof assembly.
Tightening torque:

Refer to "COMPONENT" of "General Description" for the tightening torque. Ref. to SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)>GENERAL DESCRIPTION>COMPONENT .
Install the lid assembly front and the lid assembly rear. Ref. to SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)>GLASS LID>INSTALLATION .
Install the bolt which secures the curtain airbag module.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Connect the tube drain.

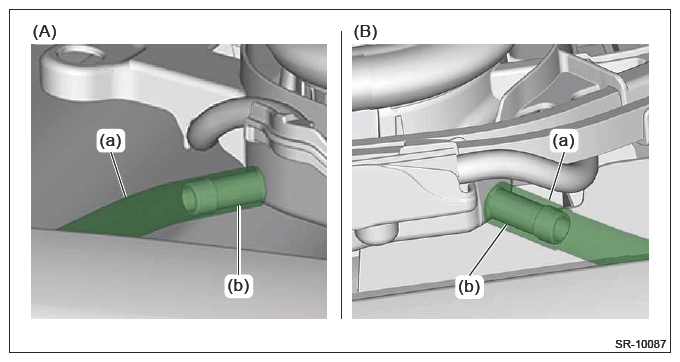

CAUTION: Insert the tube drain until it contacts the end of drain pipe.

Courtesy of SUBARU OF AMERICA, INC.

Check for the water leakage for each part and if there is no problem install the following parts.
- Front side
  - Mud guard front
  - Panel instrument passenger
  - Cover LWR driver
- Rear side
  - Bumper face rear
Install the trim panel sub assembly. Ref. to EXTERIOR/INTERIOR TRIM>ROOF TRIM>INSTALLATION .
Remove the stereo camera cover assembly. Ref. to EYESIGHT>STEREO CAMERA>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Perform reinitialization.
- Motor assembly lid: Ref. to SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)>SUNROOF CONTROL SYSTEM OPERATION>REINITIALIZATION OF GLASS ROOF CONTROL MODULE .
- Motor assembly shade: Ref. to SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)>SUNROOF CONTROL SYSTEM>OPERATION>REINITIALIZATION OF SHADE CONTROL MODULE .
