Air Cleaner Case: Installation

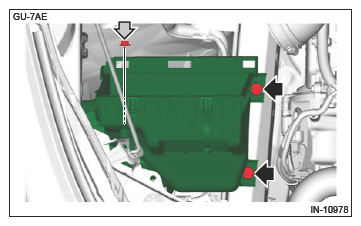

Tightening torque  :

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

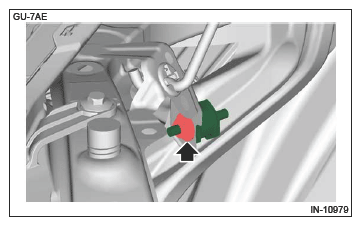

Tightening torque  :

Bolt

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Nut

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

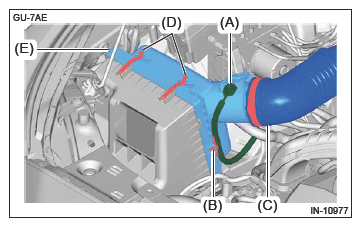

1. Set the air cleaner case (rear) (E) and secure it with the clip (D).
   NOTE: Align the claws on the air cleaner case (rear) with the holes of air cleaner case (front) and check that the claws are securely engaged.

   Courtesy of SUBARU OF AMERICA, INC.

2. Connect the air intake boot (C).

   Tightening torque  :

   3 N.m (0.3 kgf-m, 2.2 ft-lb)

3. Install the clip (B).
4. Connect the connector (A) to the mass air flow and intake air temperature sensor.
