Primary Pressure Sensor: Removal

CAUTION: If water or oil contacts the connector terminal of primary pressure sensor, replace it with a new part.

Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>TRANSMISSION ASSEMBLY>REMOVAL .

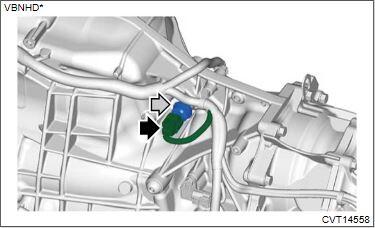

Disconnect the connector, and remove the primary pressure sensor.
CAUTION: Prepare the container for draining of CVTF.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring from the primary pressure sensor.
