Tightening Torque Specifications

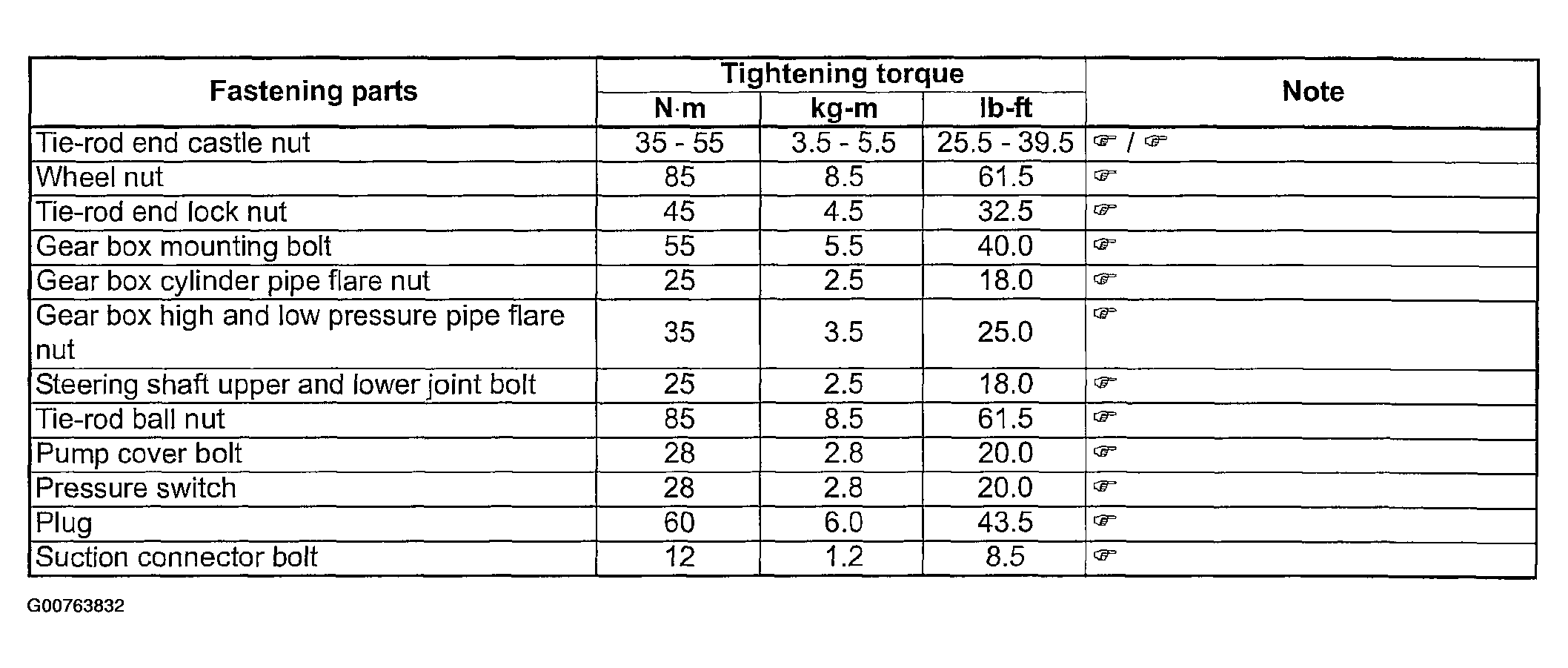

Fig 1: Tightening Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: The specified tightening torque is described in the following.

• P/S Gear Box Components
• P/S Pump Components
