Tightening Torque Specifications: Notes

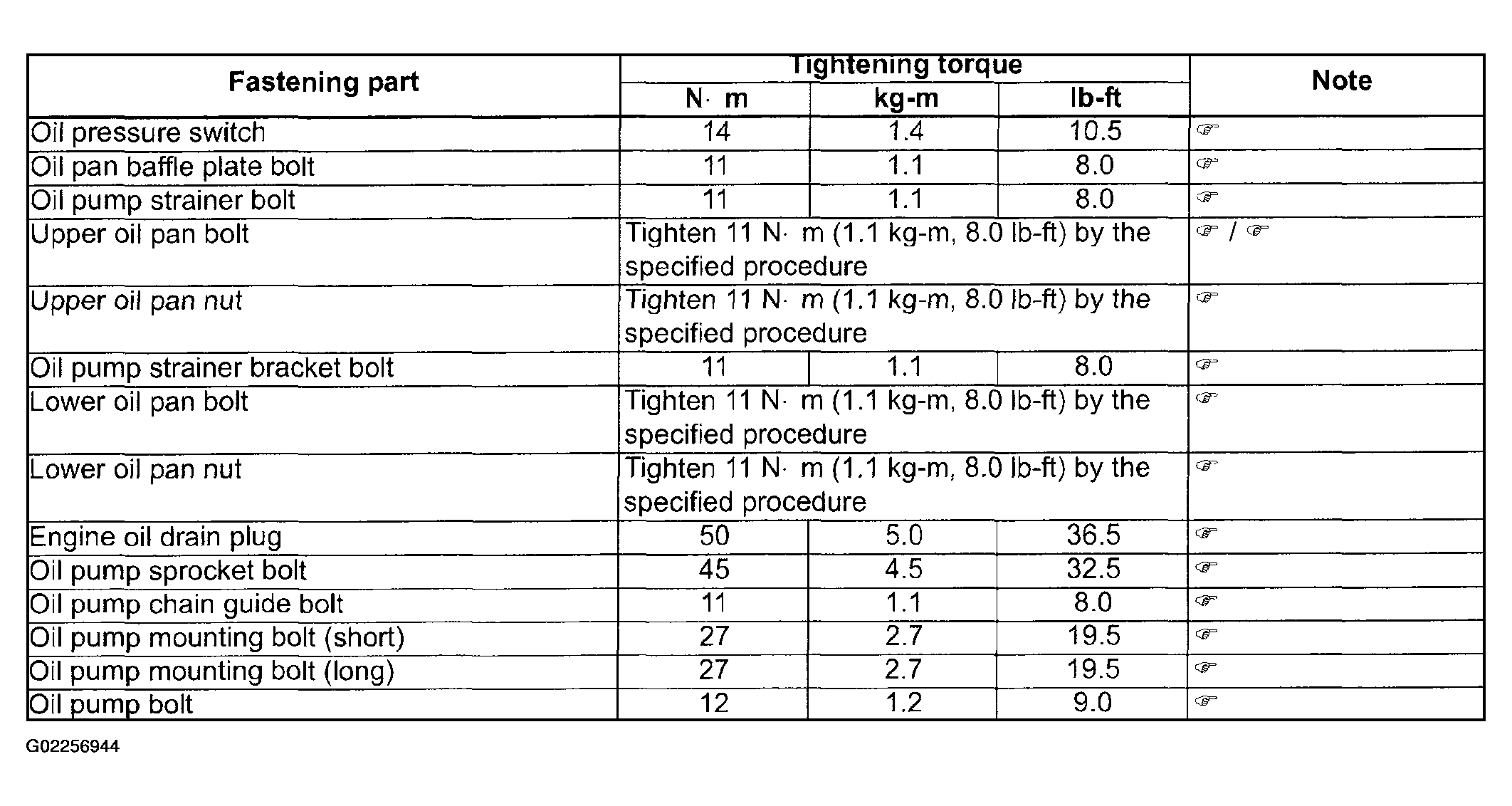

Fig 1: Tightening Torque Specifications Chart

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: The specified tightening torque is also described in the following.

1. "Oil Pan and Oil Pump Strainer Components  "
2. "Oil Pump Chain Components  "
3. "Oil Pump Components  "
