Tightening Torque Specifications

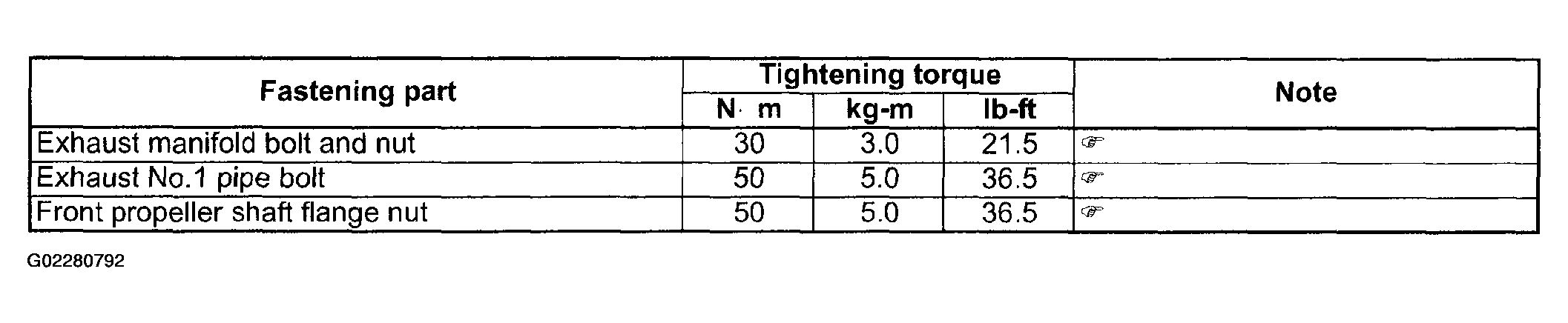

Fig 1: Tightening Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: The specified tightening torque is also described in the following.
EXHAUST SYSTEM COMPONENTS
