Diagnostic Trouble Code Chart
HINT:
- Using SST 09843-18020, connect the terminals Tc and E1 .
- If any abnormality is found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed under the code. For details of each code, refer to the page under respective "DTC No." in the DTC chart.
- Clear DTC. See PRE-CHECK .
- At a vehicle speed of 20 km/h (12 MPH), drive the vehicle for 30 sec. or more.

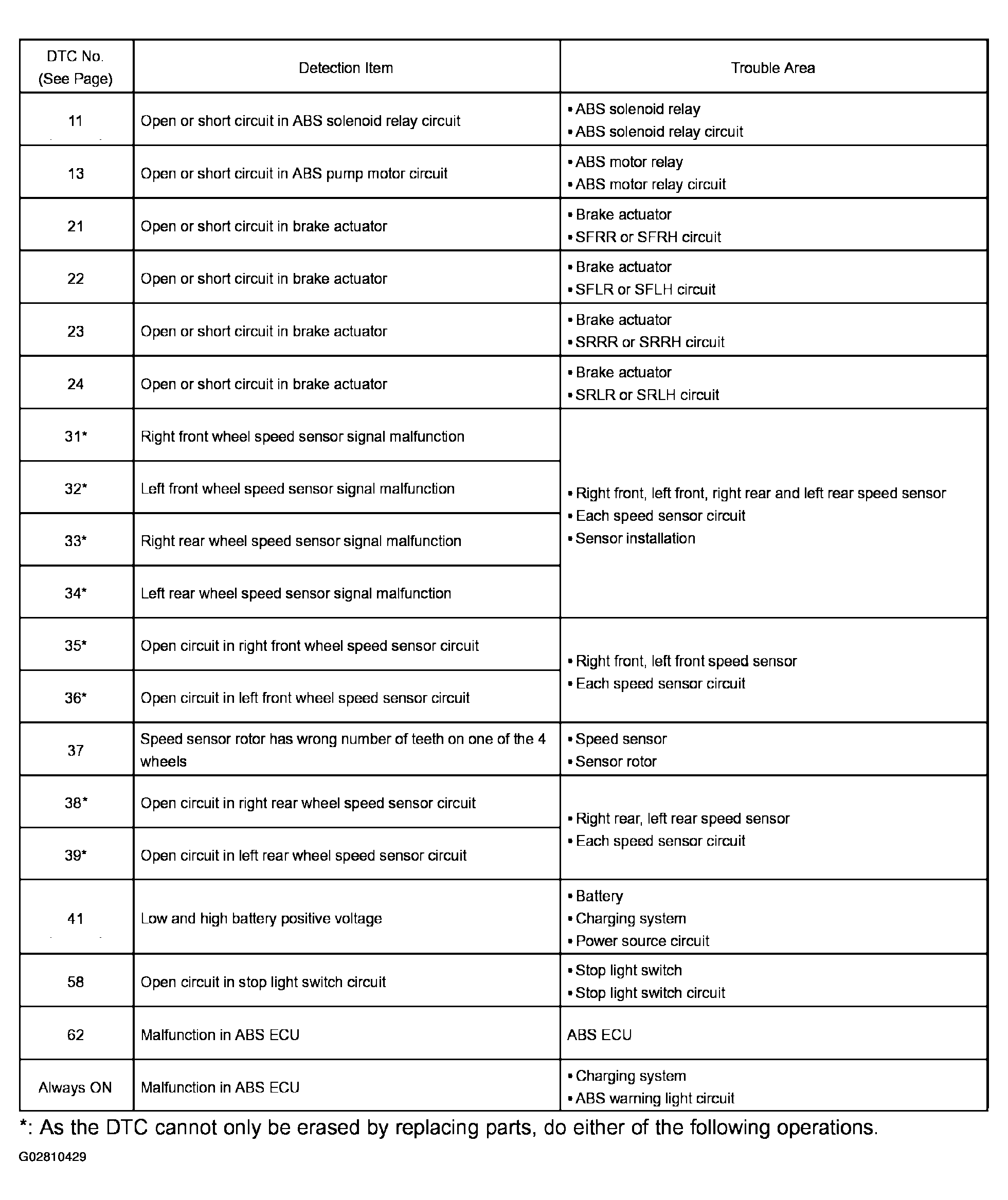

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC 11 | ABS Solenoid Relay Circuit |
| DTC 13 | ABS Motor Relay Circuit |
| DTC 21, 22, 23, 24 | ABS Solenoid Circuit |
| DTC 31, 32, 33, 34, 35, 36, 38, 39 | Speed Sensor Circuit |
| DTC 37 | Speed Sensor Rotor Faulty |
| DTC 41 | Power Source Circuit |
| DTC 58 | Stop Light Switch Circuit |
| DTC 62 | ABS ECU Malfunction |
