Anti-Lock Brake System With EBD: Pre-Check

Diagnose System
1. Release the parking brake pedal.
2. Check the indicator.
  When the ignition switch is turned ON, check that the ABS warning light and BRAKE warning light goes on for approx. 3 seconds.

  HINT:
  - When the parking brake is applied or the level of the brake fluid is low, the BRAKE warning light is lit.

    Fig 1: Identifying ABS & BRAKE Warning Light
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - If the indicator check result is not normal, proceed to troubleshooting for he ABS warning light circuit or BRAKE warning light circuit. See ABS Warning Light Circuit , BRAKE Warning Light Circuit .
3. Check the DTC.
  1. Using SST, connect terminals Tc and E₁ of DLC1.
    SST 09843-18020
  2. Turn the ignition switch ON and read the DTC from the ABS warning light on the combination meter.
    HINT:
    - If no codes appears, inspect the diagnostic circuit or ABS warning light circuit (See Tc Terminal Circuit or ABS Warning Light Circuit ).

      Fig 2: Identifying Tc And E1 Terminals Of DLC1
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

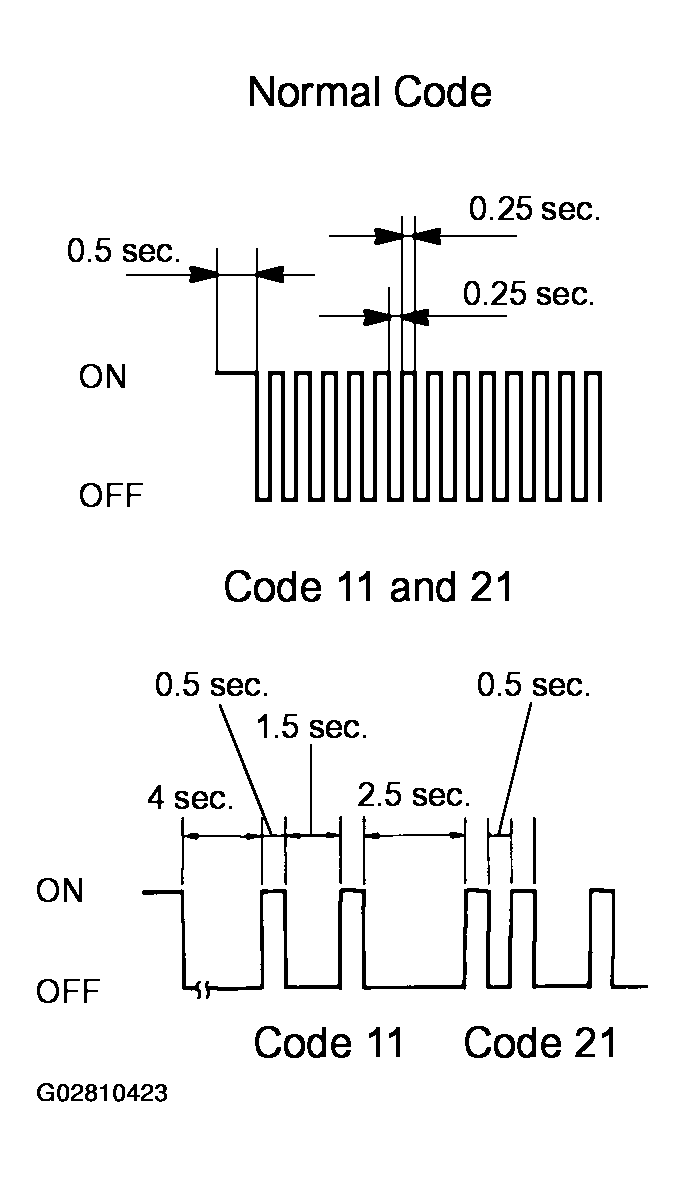

    - As an example, the blinking patterns for normal code and codes 11 and 21 are shown on the left.

      Fig 3: Blinking Patterns For Normal Code And Codes 11 And 21
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Codes are explained in the code table under DIAGNOSTIC TROUBLE CODE CHART .
  4. After completing the check, disconnect terminals Tc and E₁ , and turn off the display.
    If 2 or more malfunction codes are identified at the same time, the lowest numbered DTC will be displayed 1st.
4. Clear the DTC.
  1. Using SST, connect terminals Tc and E₁ of DLC1.
    SST 09843-18020
  2. Turn the ignition switch ON.
  3. Clear the DTC stored in ECU by depressing the brake pedal 8 times or more within 5 seconds.

    Fig 4: Clearing DTC Stored In ECU With Brake Pedal
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Check that the warning light shows the normal code.
  5. Remove the SST from the terminals of DLC1.
    SST 09843-18020
  HINT:

  Cancellation cannot be done by removing the battery cable or ECU-IG fuse.
SPEED SENSOR SIGNAL CHECK (TEST MODE)
1. Check the sensor signal.
  1. Using SST, connect terminals Ts and E₁ of DLC1.
    SST 09843-18020

    Fig 5: Identifying Tc, Ts And E1 Terminals Of DLC1
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Start the engine.
  3. Check that the ABS warning light blinks.
    HINT:

    If the ABS warning light does not blink, inspect the ABS warning light circuit (See ABS Warning Light Circuit ).

    Fig 6: Blinking Pattern Of Speed Sensor Signal
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Drive vehicle straight forward.
  5. Drive vehicle at a speed faster than 45 km/h (28 MPH) for several seconds.
    HINT:

    If the brake is applied during the check, the check routine must be started again.
  6. Stop the vehicle.
  7. Using SST, connect terminals Tc and E₁ of DLC1.
    SST 09843-18020
  8. Read the number of blinks of the ABS warning light.
    HINT:
    - See the list of DTC shown on the next page.
    - If every sensor is normal, a normal code is output (A cycle of 0.25 sec. ON and 0.25 sec. OFF is repeated).
    - If 2 or more malfunction codes are identified at the same time, the lowest numbered code will be displayed 1st.

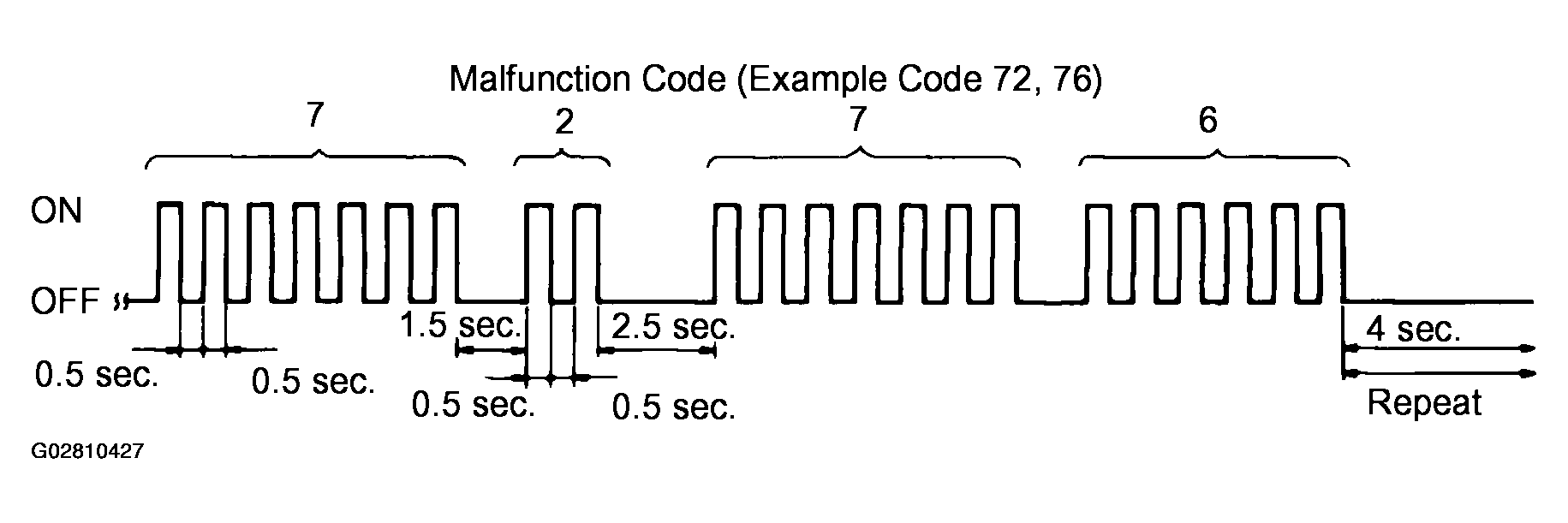

    Fig 7: Malfunction Code (Example Code 72,76) Blinking Pattern
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. After completing the check, disconnect the SST from terminals Tc and E₁ of DLC1, and turn the ignition switch OFF.
    SST 09843-18020

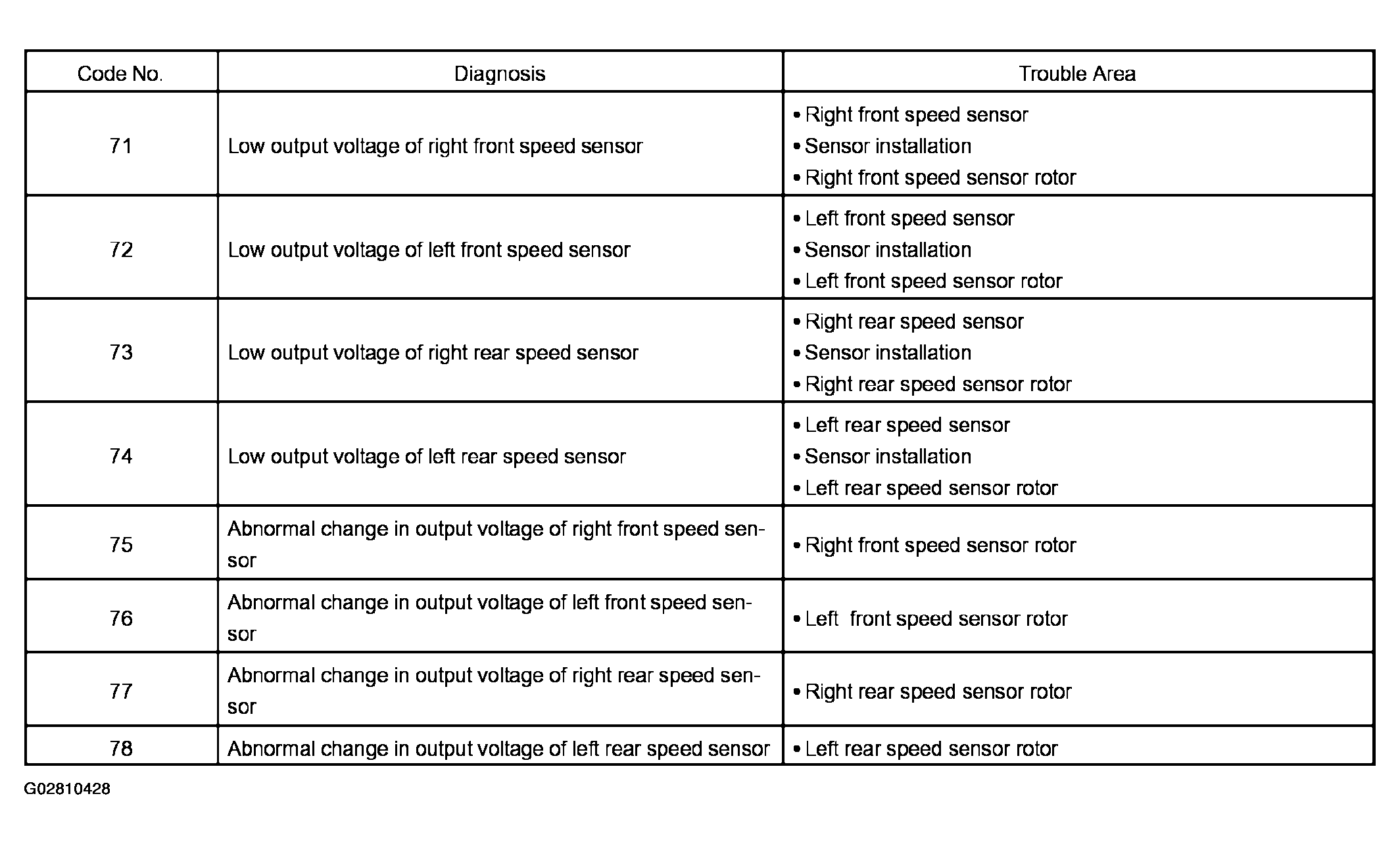

DTC of speed sensor check function:

Fig 8: DTC Chart (Speed Sensor Check Function)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
