Anti-Lock Brake System: Pre-Check

When the ignition switch is turned ON, check that the ABS warning light comes on for a few seconds.

HINT:

If the indicator check result is not normal, proceed to the troubleshooting for the ABS warning light circuit (See ABS Warning Light Circuit ).

Fig 1: Identifying ABS Warning Light Indicator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, connect terminals Tc and E₁ of the DLC2 or DLC1.

   SST 09843-18020

2. Turn the ignition switch ON.
3. Read the DTC from the ABS warning light on the combination meter.

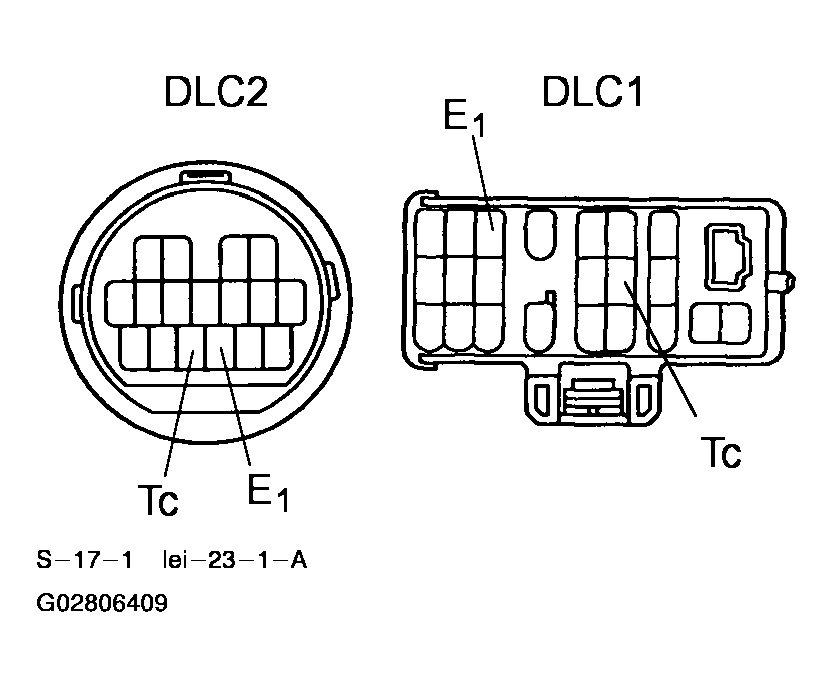

   Fig 2: Identifying Terminals Tc And E1 Of DLC2 Or DLC1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   • If no code appears, inspect the diagnostic circuit or ABS warning light circuit (See ABS Warning Light Circuit  or Tc Terminal Circuit ).
   • As an example, the blinking patterns for the normal code and codes 11 and 21 are shown in Fig 3.

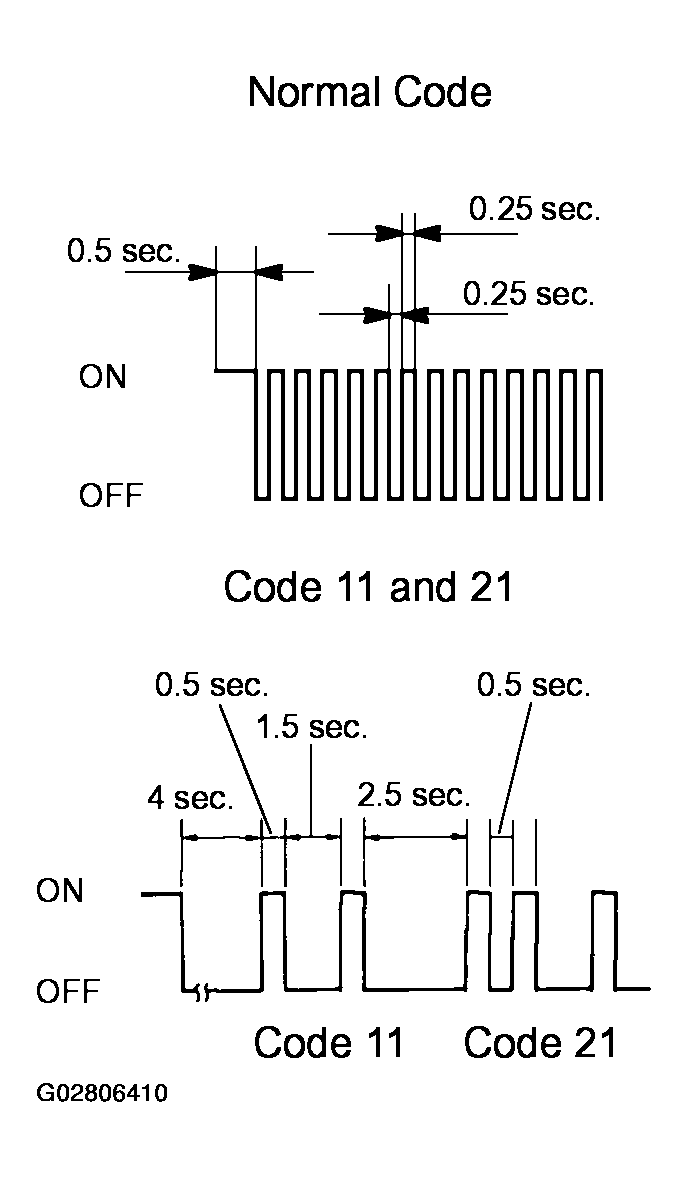

     Fig 3: Identifying Blinking Patterns Of Normal Code And Codes 11 And 21

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Codes are explained in the code table on DIAGNOSTIC TROUBLE CODE CHART .
5. After completing the check, disconnect terminals Tc and E₁ of the DLC1 or DLC2, and turn off the display.

If 2 or more malfunctions are indicated simultaneously the lowest numbered DTC will be displayed first.

1. Connect the TOYOTA hand-held tester to the DLC2.
2. Turn the ignition switch ON.
3. Read the DTC by following the prompts on the tester screen.

HINT:

Please refer to the TOYOTA hand-held tester operator's manual for further details.

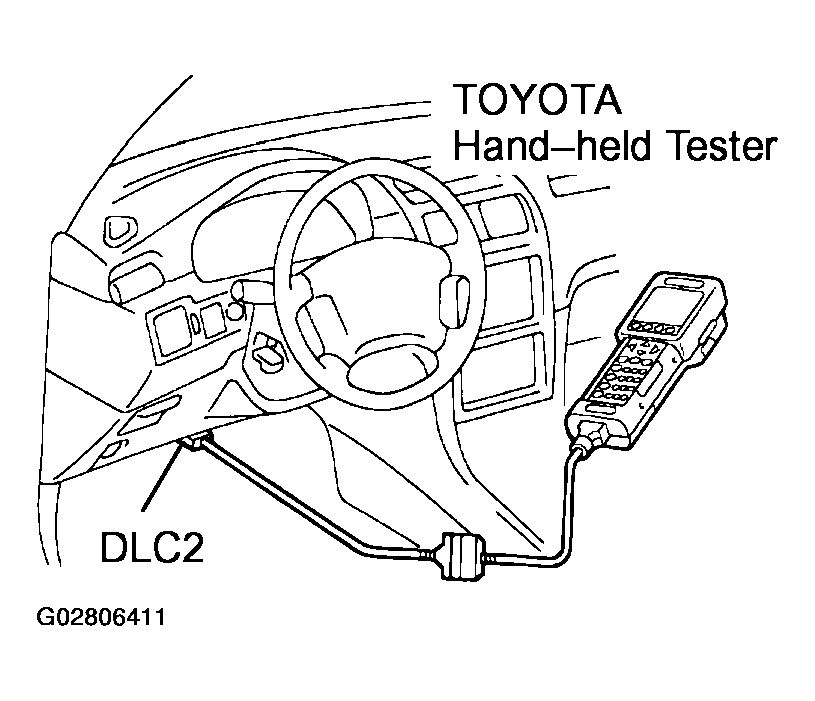

Fig 4: Connecting TOYOTA Hand-Held Tester To DLC2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Clear the DTC.

1. Using SST, connect terminals Tc and E₁ of the DLC2 or DLC1.

   SST 09843-18020

2. Turn the ignition switch ON.
3. Clear the DTC stored in the ECU by depressing the brake pedal 8 or more times within 5 seconds.
4. Check that the warning light shows the normal code.
5. Remove the SST from the terminals of the DLC2 or DLC1.

   SST 09843-18020

Fig 5: Clearing DTC Stored In ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Cancellation cannot be done by removing the battery cable or ECU-B fuse.

Check the speed sensor signal.

1. When the ignition switch is turned ON, check that the ABS warning light comes on for a few seconds.
2. Turn the ignition switch OFF.
3. Using SST, connect terminals Ts and E₁ of the DLC1.

   SST 09843-18020

   Fig 6: Identifying Terminals Ts And E1 Of DLC1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Start the engine.
5. Check that the ABS warning light blinks.
   Fig 7: Identifying ABS Warning Light Blinking Pattern

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   If the ABS warning light does not blink, inspect the ABS warning light circuit (See ABS Warning Light Circuit ).

6. Drive the vehicle straight forward.

   HINT:

   Drive the vehicle at 45 - 55 km/h (28 - 34 MPH) for several seconds. If the brake is applied during the check, the check routine must be followed again.

7. Stop the vehicle.
8. Turn the ignition switch OFF.
9. Disconnect the SST from terminals Ts and E₁ , and connect the SST to terminals Tc and E₁ of the DLC1.

   SST 09843-18020

10. Turn the ignition switch ON.
11. Read the number of blinks of the ABS warning light.

    HINT:

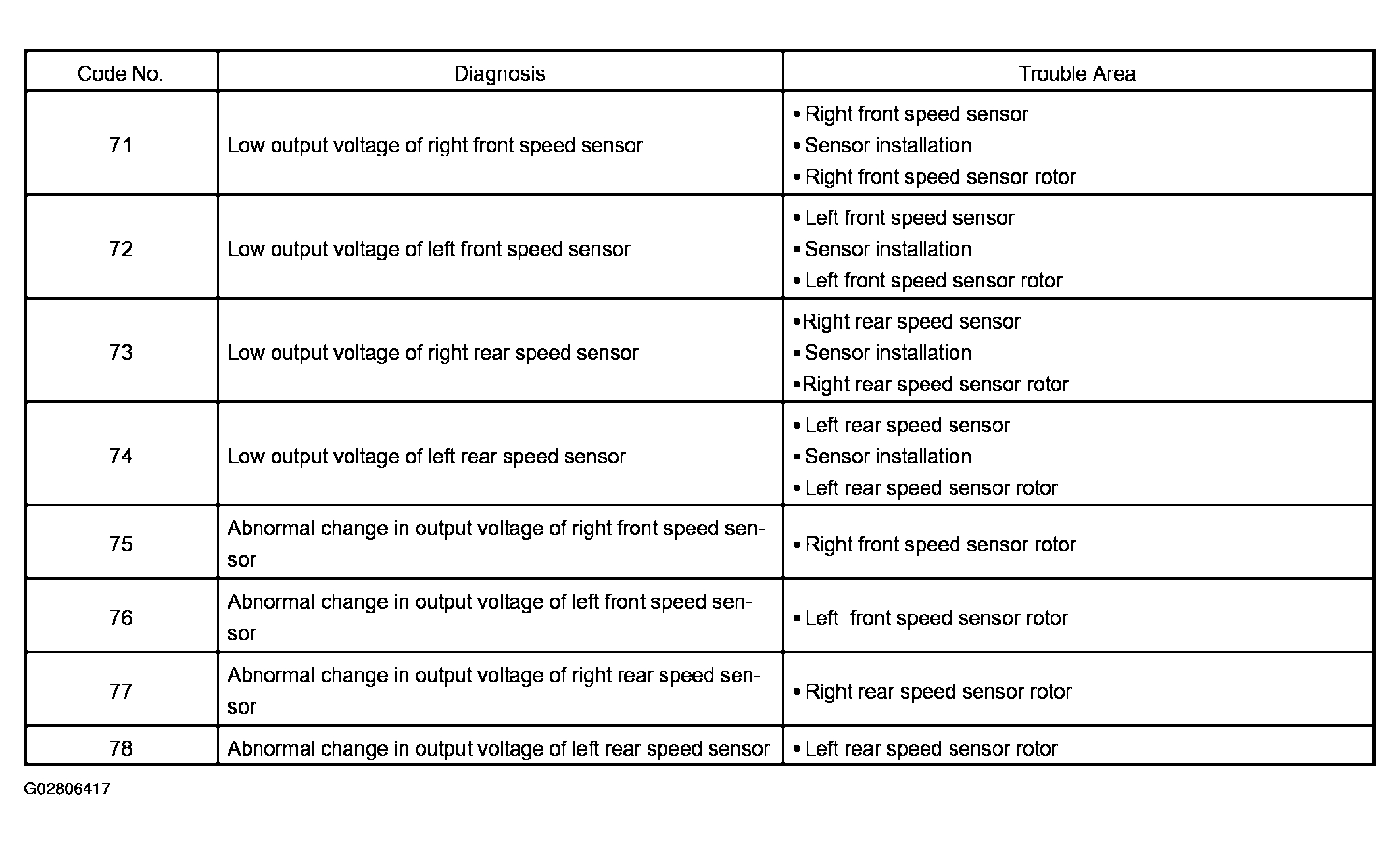

    - See the DTC list shown in Fig 10.

    - If every sensor is normal, the normal code is output (A cycle of 0.25 seconds ON and 0.25 seconds OFF is repeated).

    - If 2 or more malfunctions are indicated simultaneously, the lowest numbered code will be displayed first.

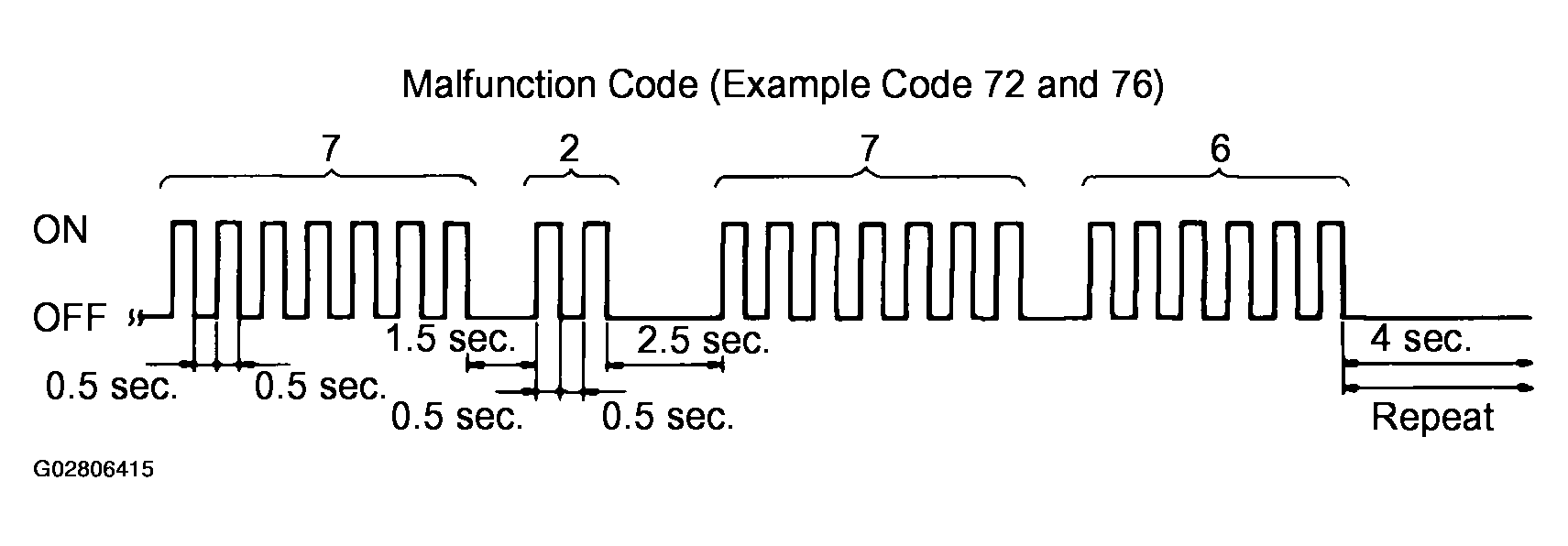

    Fig 8: Identifying DTCs 72 And 76

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. After doing the check, disconnect the SST from terminals Tc and E₁ of the DLC1, and turn the ignition switch OFF.

    SST 09843-18020

Check the speed sensor signal.

1. Connect the TOYOTA hand-held tester to the DLC2.

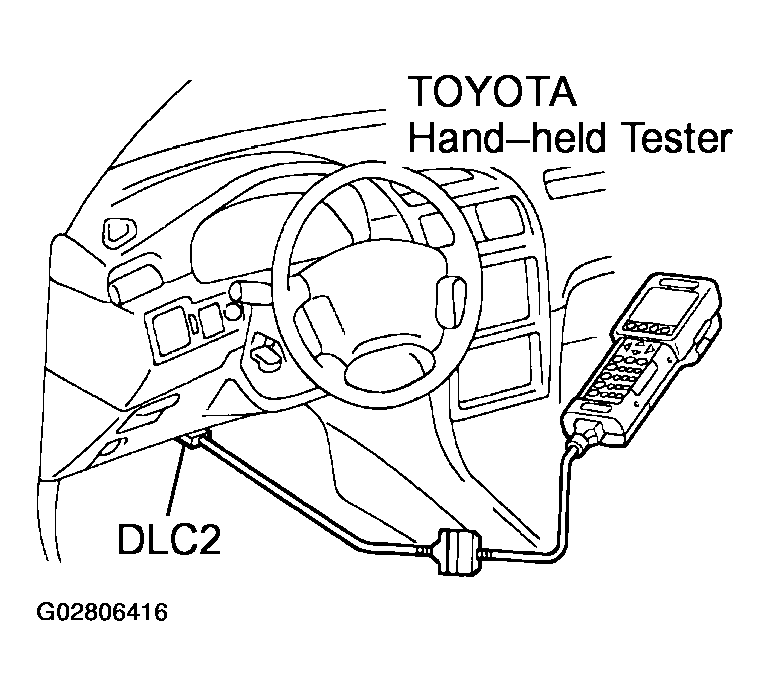

   Fig 9: Connecting TOYOTA Hand-Held Tester To DLC2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Follow steps  4 -  6.
3. Read the DTC by following the prompts on the tester screen.

   Please refer to the TOYOTA hand-held tester operator's manual for further details.
