Automatic Transaxle Unit: Installation

Using a scale and a straight edge, measure the distance from the installed surface to the transaxle housing.

Correct distance: 13.7 mm (0.539 in.) or more

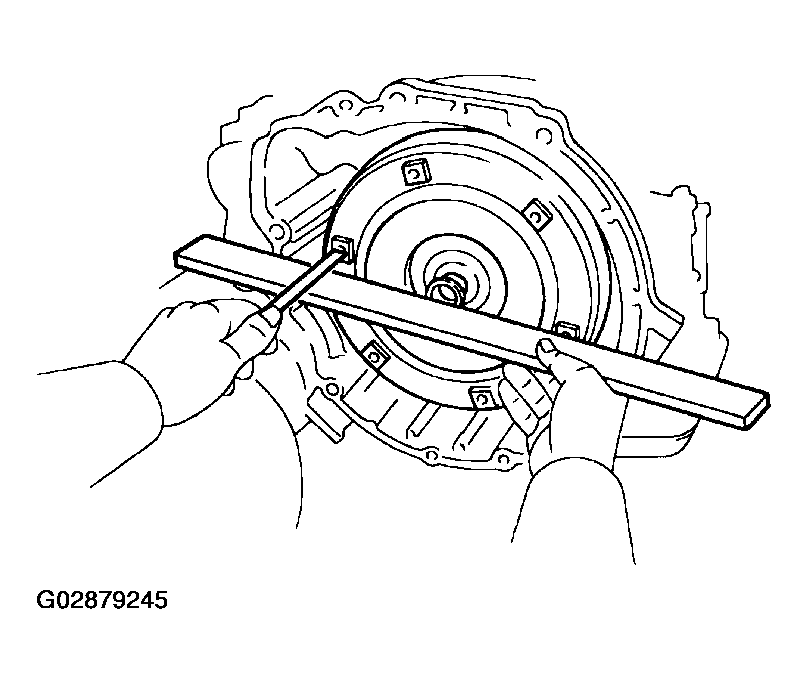

Fig 1: Checking Torque Converter Clutch Installation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Installation is in the reverse order of removal (See  REMOVAL   ).

HINT:

After installation, check and inspect the following items.

• Fill ATF and check fluid level (See PRE-CHECK ).
• Check front wheel alignment (See INSPECTION ).
• Do the road test (See PRE-CHECK ).
• Adjust the hood (See ADJUSTMENT ).
