Inspection Procedure
- READ DATA LIST (ACC RELAY)
- Connect the hand-held tester (with CAN VIM) to the DLC3.
- Turn the power switch ON (IG) and press the hand-held tester main switch ON.
- Read the DATA LIST according to the displays on the tester.
Power source control ECU:
OK: ON (power switch ON (ACC)) appears on the screen.
- NG: Go to step 2
- OK: GO TO NEXT STEP
REPLACE POWER SOURCE CONTROL ECU
- INSPECT RELAY (ACC) (See INSPECTION
)
- NG: REPLACE RELAY
- OK: GO TO NEXT STEP

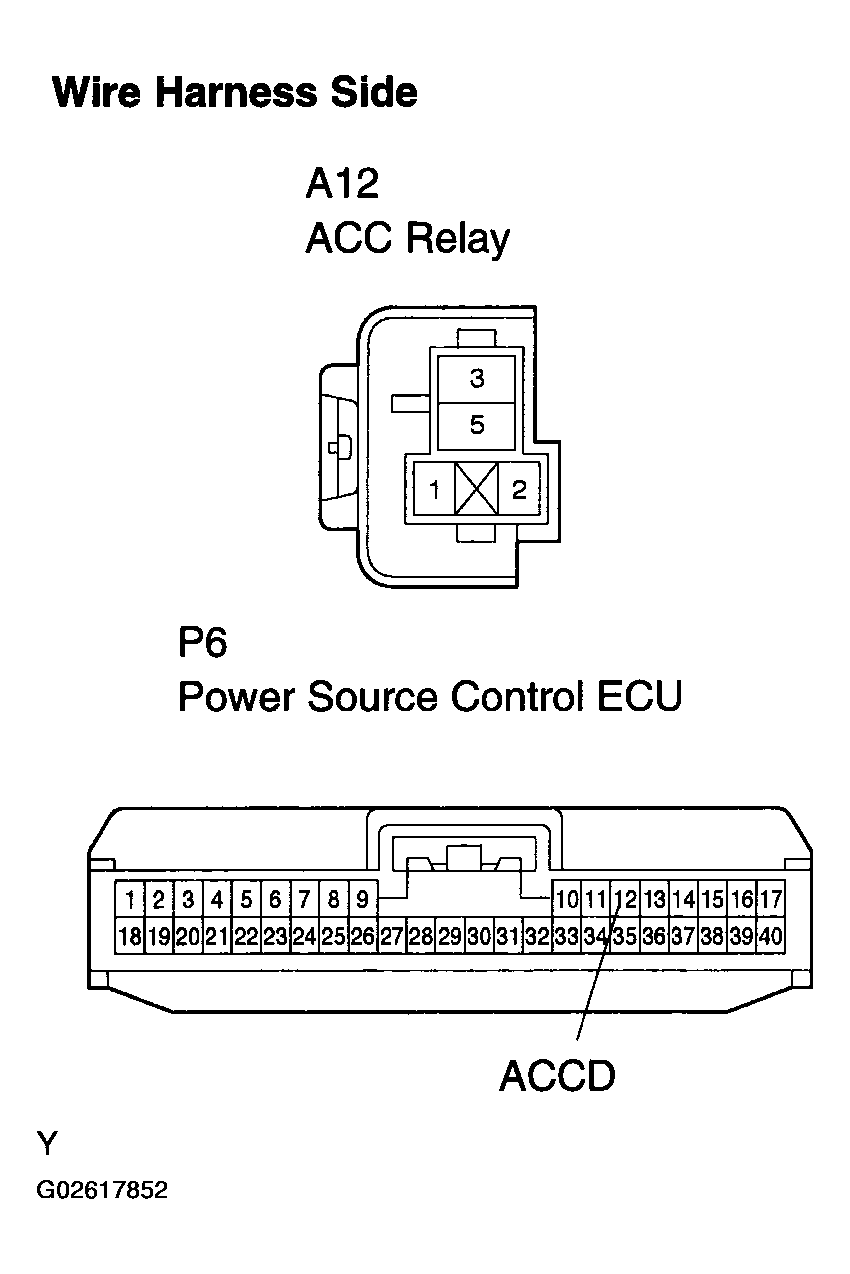

- CHECK WIRE HARNESS (ACC RELAY - POWER SOURCE CONTROL ECU AND BODY GROUND)
- Remove the ACC relay.
- Disconnect the P6 connector.
- Measure the resistance of the wire harness side connectors.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester Connection Specified Condition A12-1 - P6-11 (ACCD) Below 1 Ω A12-2 - Body ground Below 1 Ω A12-1 or P6-11 (ACCD) - Body ground 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: GO TO NEXT STEP
REPLACE POWER SOURCE CONTROL ECU
