Transmission Wire: Installation

INSTALL TRANSMISSION WIRE
1. Coat a O-ring with ATF.
2. Install the transmission wire and bolt.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
3. Connect the transmission wire connector.
INSTALL TRANSMISSION VALVE BODY ASSEMBLY
HINT:

(See INSTALLATION )

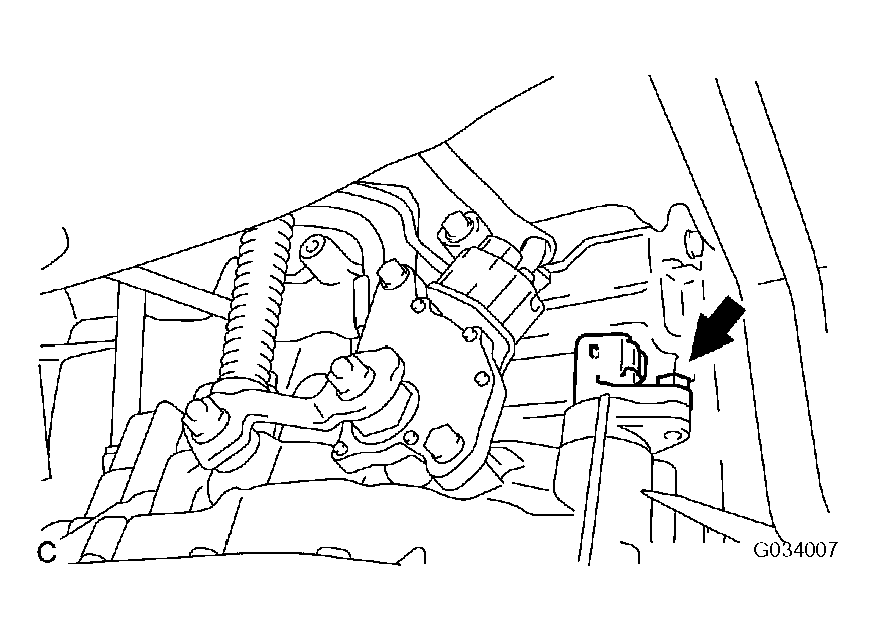

Fig 1: Connecting Transmission Wire Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
