Automatic Transaxle Assembly: Installation

1. Inspect the torque converter (see TORQUE CONVERTER AND DRIVE PLATE  ).

1. Install the torque converter clutch to the automatic transaxle.
2. Using a vernier caliper, measure dimension A between the transaxle and the end surface of the drive plate.

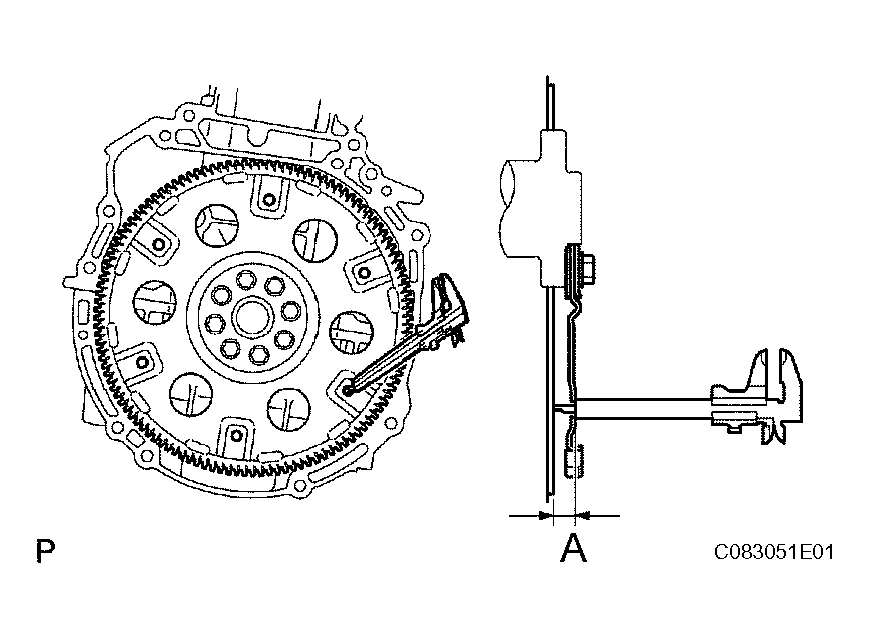

   Fig 1: Measuring Dimension Between Transaxle And End Surface Of Drive Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a vernier caliper and straightedge, measure the dimension B shown in the illustration and check that B is greater than A.

   Standard dimension: A + 1.0 mm (0.039 in.) or more

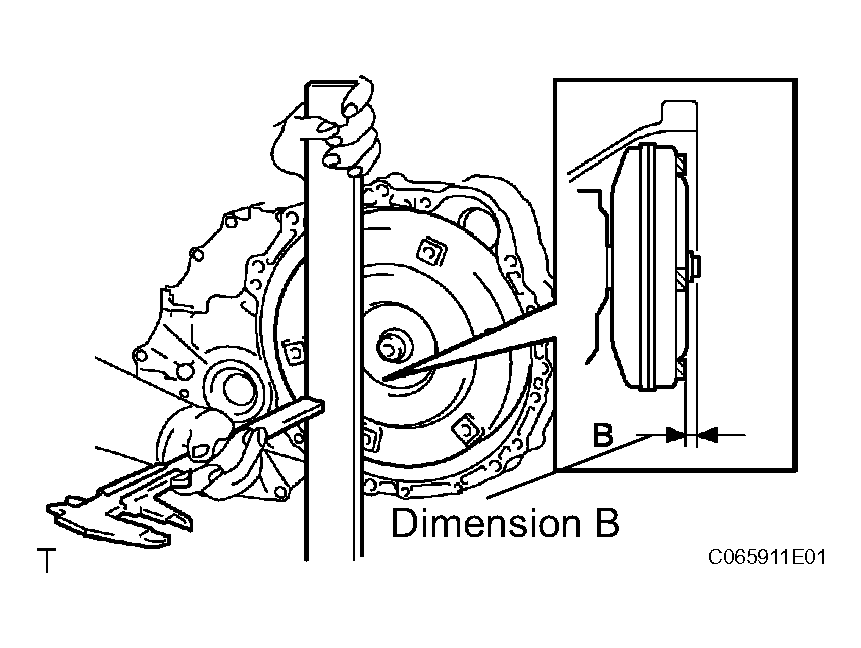

   Fig 2: MeasuringTorque Converter Dimension "B"

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the cable bracket with the 2 bolts.

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

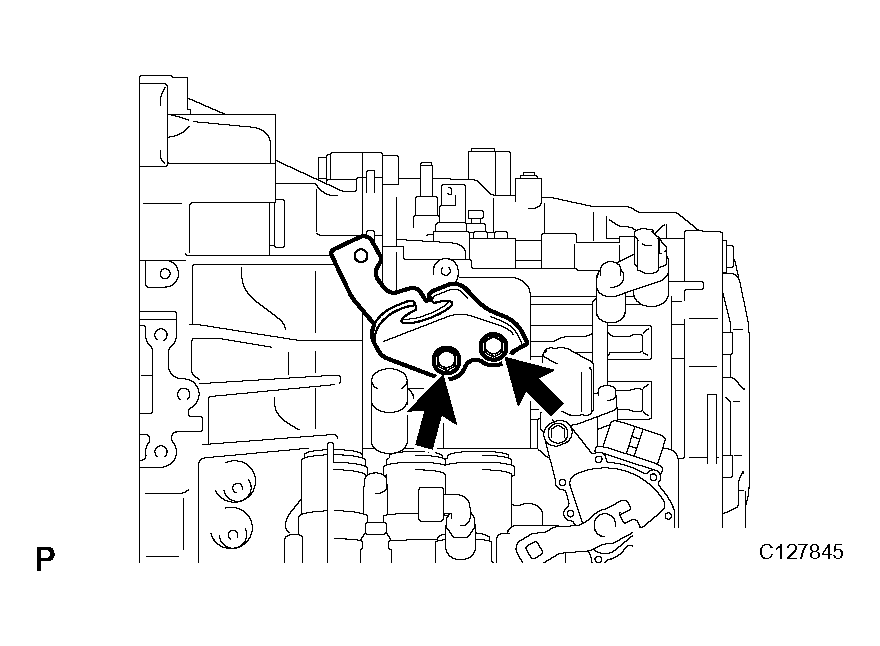

   Fig 3: Installing Cable Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the filler tube with the bolt.
2. Install the filler tube with the bolt.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

3. Install the ATF dipstick.
   Fig 4: Installing ATF Dipstick

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

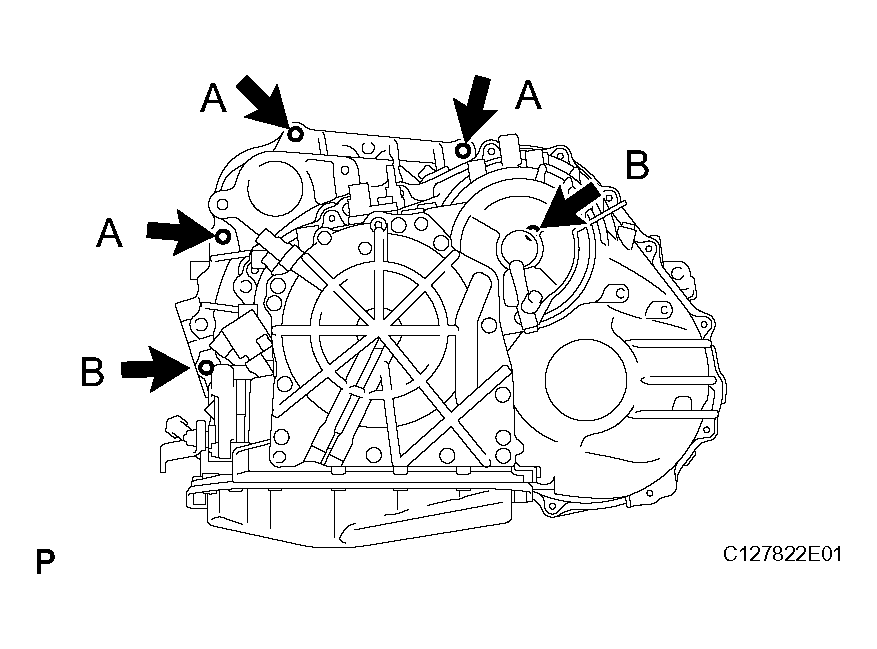

1. Install the automatic transaxle with the 5 upper side mounting bolts to the engine.

   Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf) for bolt A

   46 N*m (469 kgf*cm, 34 ft.*lbf) for bolt B

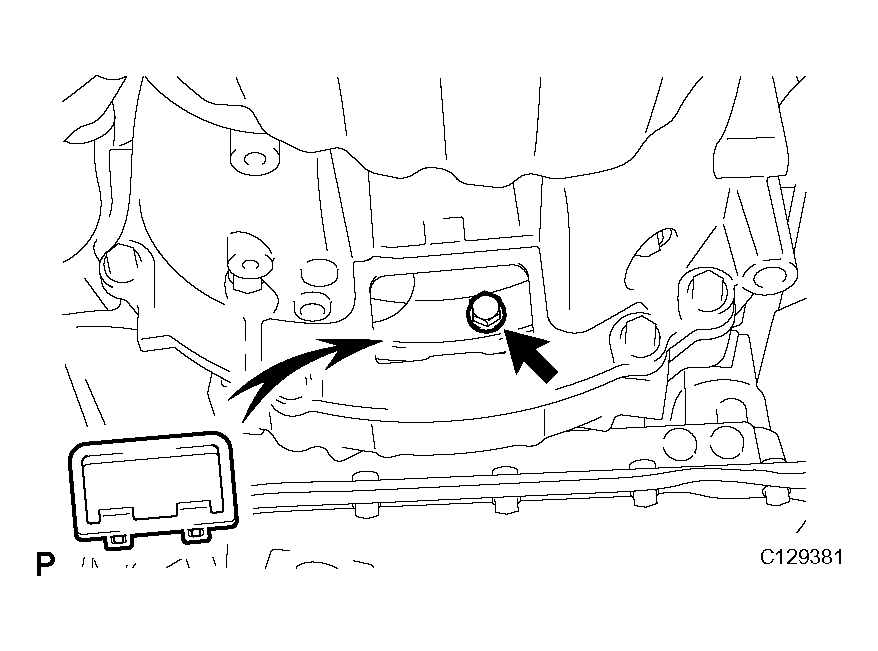

   Fig 5: Installing Automatic Transaxle Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 4 lower side mounting bolts.

   Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

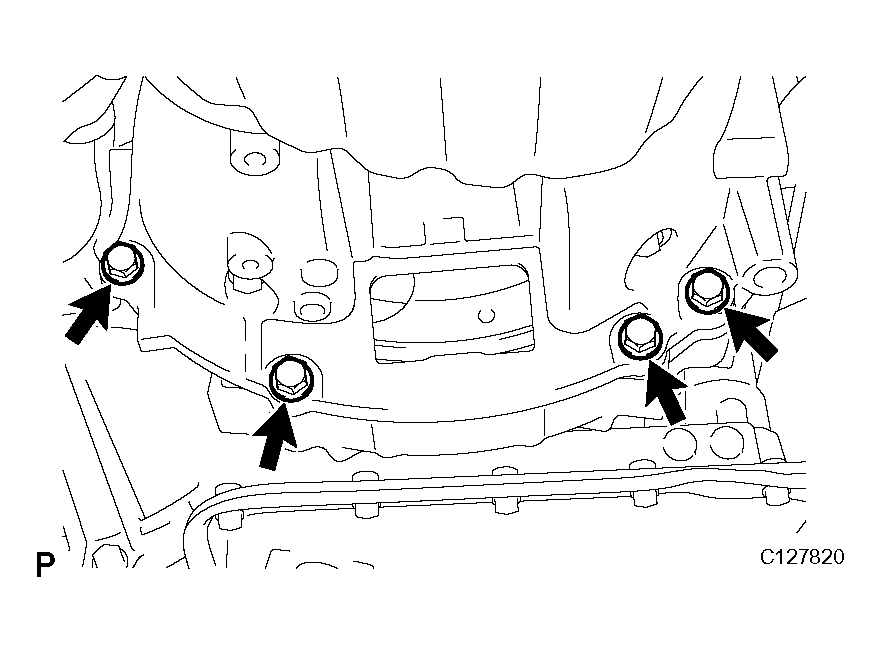

   Fig 6: Installing Lower Side Mounting Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 6 torque converter clutch mounting bolts.

   Torque: 41 N*m (418 kgf*cm, 30 ft.*lbf)

   HINT:

   First install the green colored bolt and then the 5 bolts.

4. Install the flywheel housing under cover.

1. Install the transfer (see INSTALLATION ).
   Fig 7: Installing Transfer Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

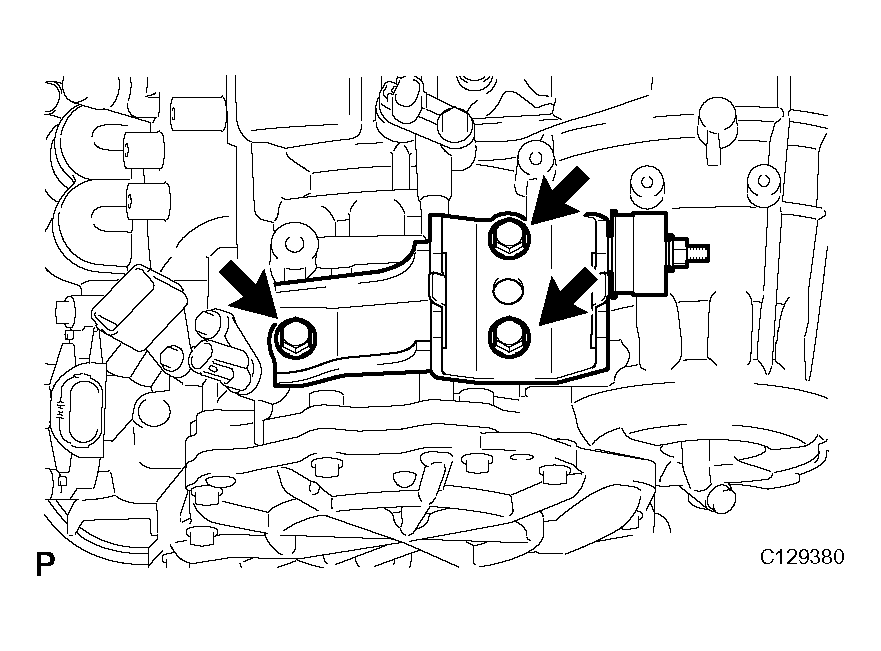

1. Install the mounting bracket with the 3 bolts.

   Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

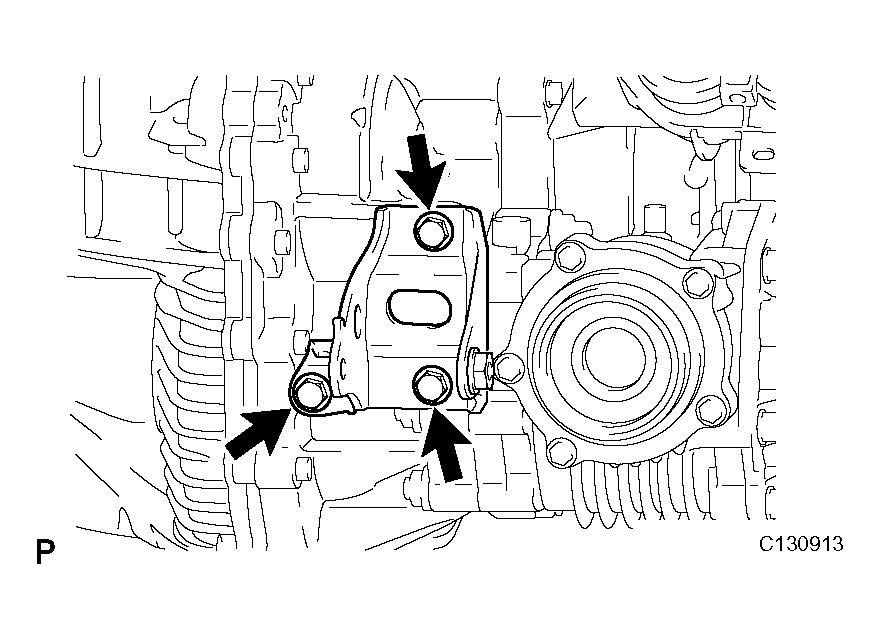

   Fig 8: Installing Engine Mounting Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

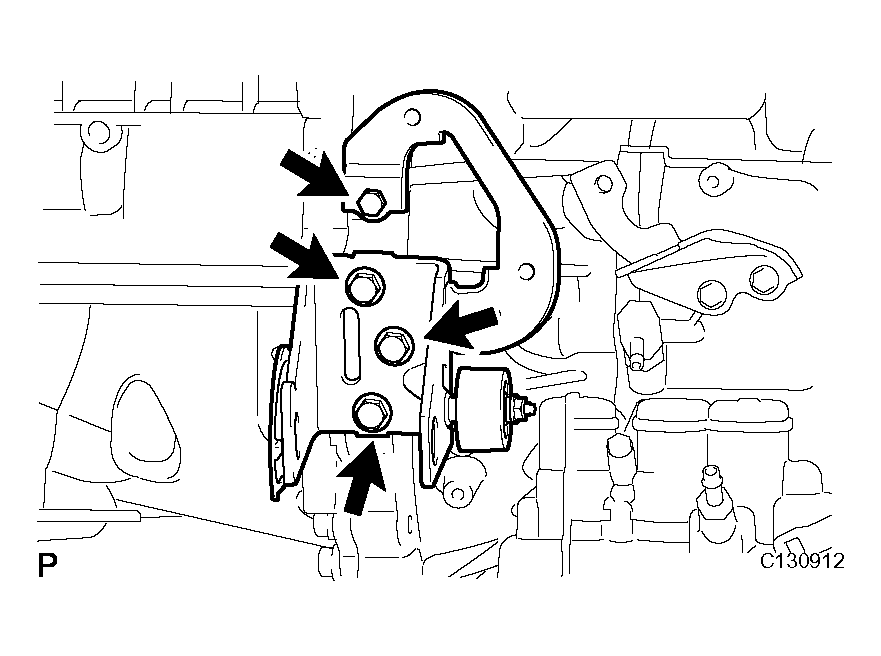

1. Install the mounting bracket with the 4 bolts.

   Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf) for 14 mm head bolt

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf) for 12 mm head bolt

   Fig 9: Installing Mounting Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the mounting bracket with the 3 bolts.

   Torque: 45 N*m (459 kgf*cm, 33 ft.*lbf)

1. Install the oil cooler (see REMOVAL  ).
   Fig 10: Installing Transmission Oil Cooler

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

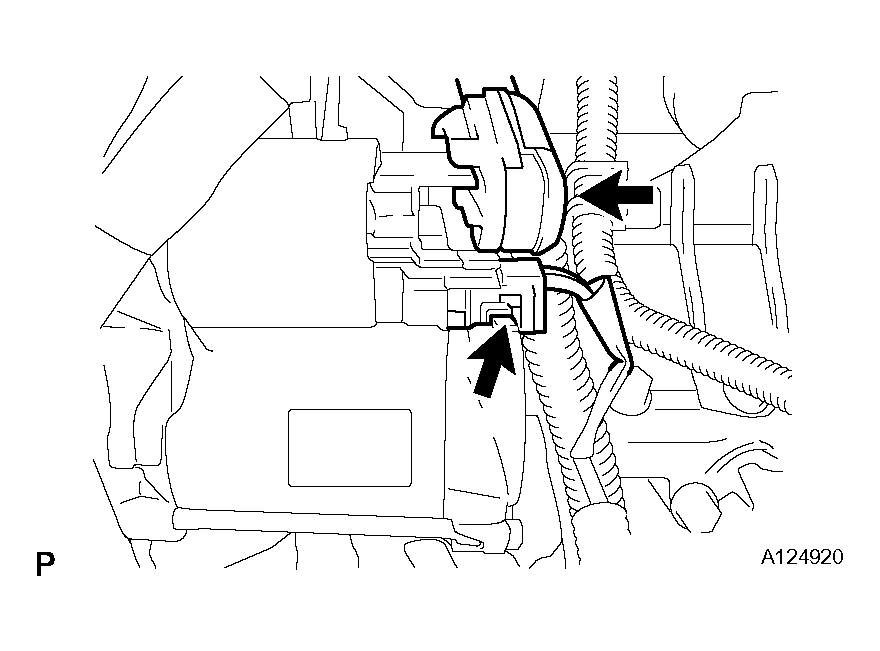

1. Connect the wire harness clamps.
2. Connect the 2 speed sensor connectors.
3. Connect the transaxle wire connector.
4. Connect the park/neutral position switch connector.

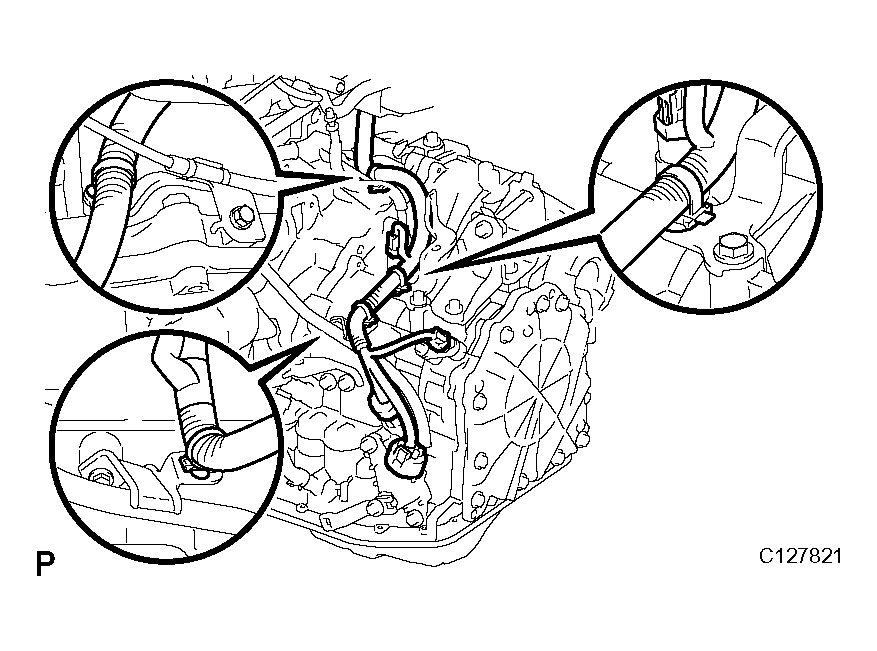

   Fig 11: Connecting Wire Harness

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the starter with the 2 bolts.

   Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

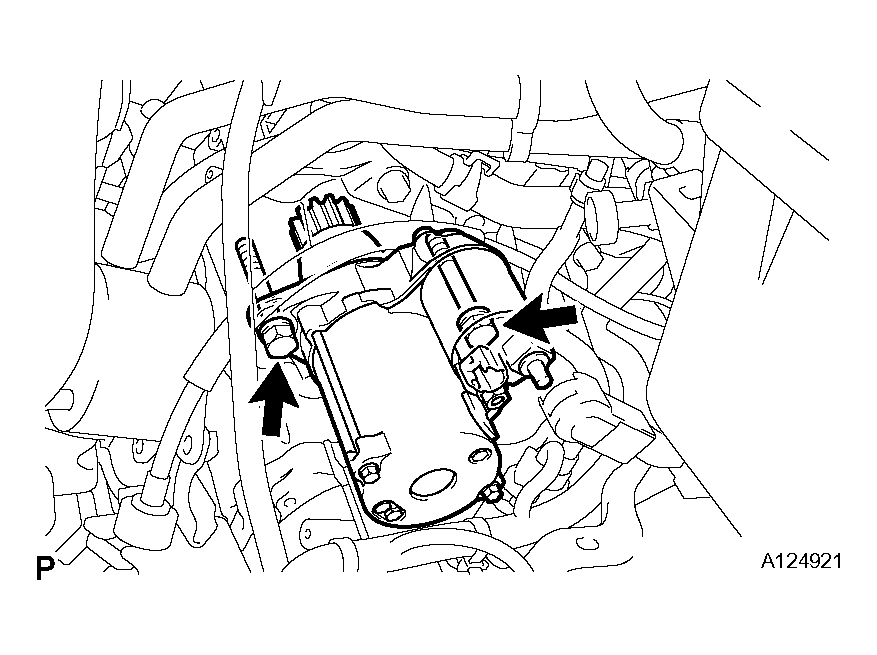

   Fig 12: Installing Starter Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the starter wire with the nut.

   Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

3. Connect the starter connector.
4. Install the terminal nut and cover the nut with the cap.

   Torque: 9.8 N*m (100 kgf*cm, 7 in.*lbf)

1. Install the engine with transaxle. (see ).
   Fig 13: Installing Engine Assembly With Transaxle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fluid type: Toyota Genuine ATF WS

1. Inspect the automatic transaxle fluid (see INSPECTION PROCEDURE  ).

1. Perform the RESET MEMORY procedures (A/T initialization) (see INITIALIZATION  ).
