Transfer Assembly: Installation

  1. INSTALL TRANSFER ASSEMBLY
    1. Install the transfer to the transaxle with the 6 nuts and 2 bolts.

      Torque: 69 N*m (700 kgf*cm, 51 ft.*lbf)

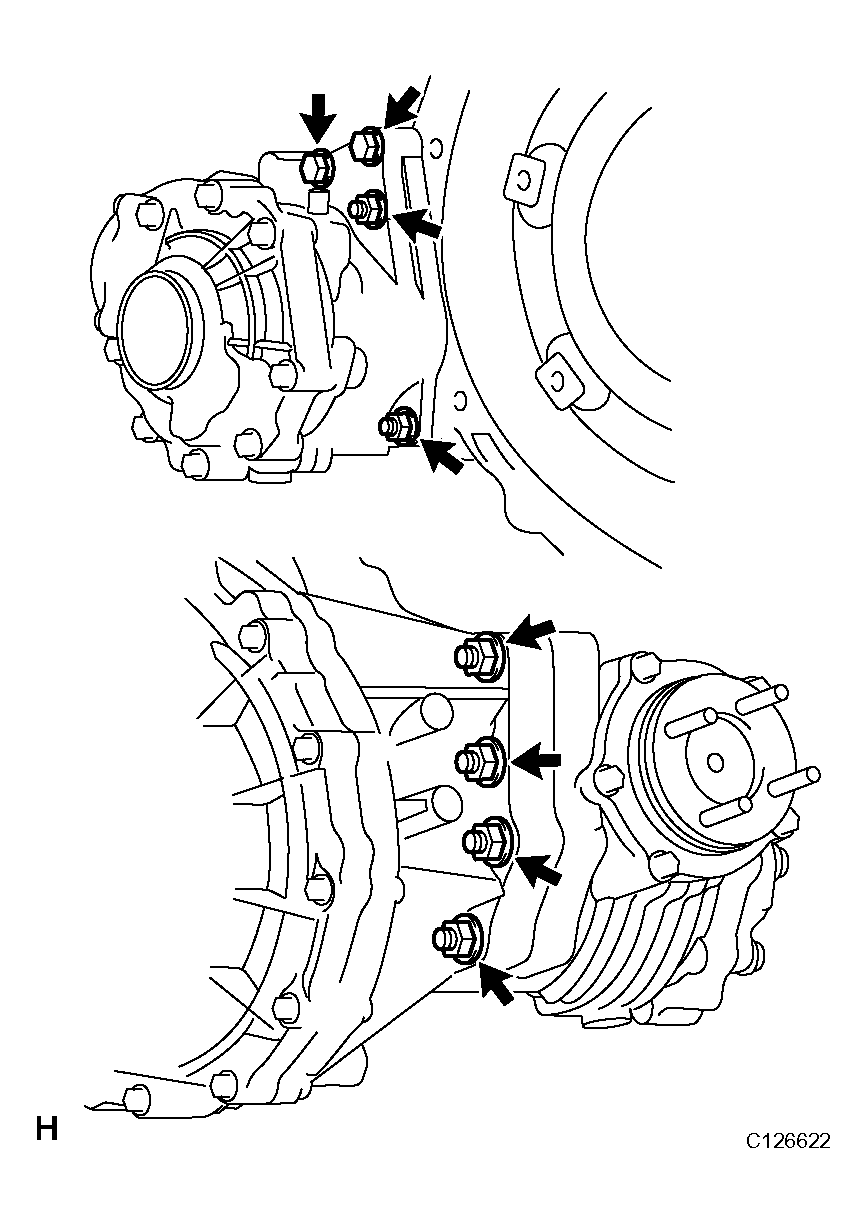

      Fig 1: Installing Transfer To Transaxle With 6 Nuts And 2 Bolts
      G04488833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR ENGINE MOUNTING BRACKET (For 2GR-FE) (see appropriate step(s) under  REMOVAL  )
  3. INSTALL REAR ENGINE MOUNTING BRACKET (For 2AZ-FE) (see appropriate step(s) under  INSTALLATION  )
  4. INSTALL ENGINE ASSEMBLY WITH AUTOMATIC TRANSAXLE
    1. For 2GR-FE: Install the engine with automatic transaxle (see appropriate step(s) under INSTALLATION ).
    2. For 2AZ-FE: Install the engine with automatic transaxle (see appropriate step(s) under INSTALLATION ).
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
