Blower Unit: Installation

  1. INSTALL BLOWER ASSEMBLY (w/o PTC Heater)
    1. Install the blower assembly with the 3 screws.
    Fig 1: Identifying Blower Assembly Screws
    G06037544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BLOWER ASSEMBLY (w/ PTC Heater)
    1. Install the blower assembly with the 3 screws.
    2. Engage the quick heater connector and install the screw.

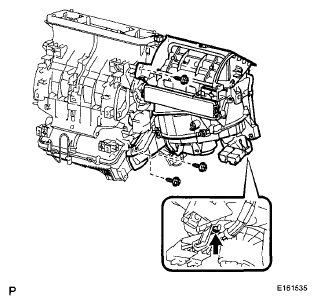

      Fig 2: Identifying Blower Assembly With Screws
      G06037622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage each clamp.
  3. INSTALL NO. 3 AIR DUCT SUB-ASSEMBLY (See  INSTALLATION  )
  4. TEMPORARILY TIGHTEN AIR CONDITIONING UNIT (See  INSTALLATION  )
    Fig 3: Identifying Blower Assembly Clamp
    G06015401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY (See  INSTALLATION  )
  6. INSTALL AIR CONDITIONING UNIT (See  INSTALLATION  )
  7. INSTALL INSTRUMENT PANEL BRACE SUB-ASSEMBLY (See  INSTALLATION  )
  8. INSTALL THEFT WARNING ECU ASSEMBLY  (See INSTALLATION )
  9. INSTALL CENTER INSTRUMENT PANEL TO COWL BRACE (See  INSTALLATION  )
  10. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY (See  INSTALLATION  )
  11. INSTALL CENTER INSTRUMENT PANEL REGISTER CONNECTOR ASSEMBLY (See  INSTALLATION  )
  12. INSTALL REAR NO. 1 AIR DUCT (w/ Rear Air Duct) (See  INSTALLATION  )
  13. INSTALL REAR NO. 2 AIR DUCT (w/ Rear Air Duct) (See  INSTALLATION  )
  14. INSTALL REAR NO. 3 AIR DUCT (w/ Rear Air Duct) (See  INSTALLATION  )
  15. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY (See  INSTALLATION  )
  16. INSTALL POWER STEERING ECU ASSEMBLY  (See INSTALLATION )
  17. INSTALL STEERING POST ASSEMBLY  (See INSTALLATION )
  18. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
  19. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for 2WD)  (See INSTALLATION )
  20. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for 4WD)  (See INSTALLATION )
  21. INSTALL STOP LIGHT SWITCH ASSEMBLY  (See INSTALLATION )
  22. INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY  (See INSTALLATION )
  23. INSTALL INSTRUMENT PANEL SUB REINFORCEMENT  (See INSTALLATION )
  24. INSTALL COLUMN HOLE COVER SILENCER SHEET  (See INSTALLATION )
  25. INSTALL TRANSPONDER KEY AMPLIFIER (w/ Engine Immobilizer System)  (See INSTALLATION )
  26. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY  (See INSTALLATION )
  27. INSTALL RADIO WIRE SUB-ASSEMBLY  (See INSTALLATION )
  28. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  29. INSTALL UPPER STEERING COLUMN COVER  (See INSTALLATION )
  30. INSTALL LOWER STEERING COLUMN COVER  (See INSTALLATION )
  31. CONNECT SHIFT LEVER ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  32. CONNECT SHIFT LEVER ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  33. INSTALL COWL SIDE TRIM BOARD LH  (See INSTALLATION )
  34. INSTALL FRONT DOOR SCUFF PLATE LH  (See INSTALLATION )
  35. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Instrument Panel Under Cover)  (See INSTALLATION )
  36. INSTALL COWL SIDE TRIM BOARD RH  (See INSTALLATION )
  37. INSTALL FRONT DOOR SCUFF PLATE RH  (See INSTALLATION )
  38. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  39. INSTALL NO. 1 SWITCH HOLE BASE  (See INSTALLATION )
  40. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Manual Transaxle)  (See INSTALLATION )
  41. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Automatic Transaxle)  (See INSTALLATION )
  42. INSTALL FRONT NO. 1 CONSOLE BOX INSERT  (See INSTALLATION )
  43. INSTALL FRONT NO. 2 CONSOLE BOX INSERT  (See INSTALLATION )
  44. INSTALL FRONT CONSOLE BOX ASSEMBLY (for 2WD)  (See INSTALLATION )
  45. INSTALL FRONT CONSOLE BOX ASSEMBLY (for 4WD)  (See INSTALLATION )
  46. INSTALL CONSOLE BOX CARPET
  47. INSTALL NO. 2 SWITCH HOLE BASE  (See INSTALLATION )
  48. INSTALL FRONT UPPER CONSOLE BOX  (See INSTALLATION )
  49. INSTALL AIR CONDITIONING PANEL ASSEMBLY (See  INSTALLATION  )
  50. INSTALL NAVIGATION ANTENNA CORD SUB-ASSEMBLY (w/ Navigation System)  (See INSTALLATIONREMOVAL )
  51. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET (w/o Navigation System)  (See INSTALLATION )
  52. INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (w/ Navigation System)  (See INSTALLATION )
  53. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY  (See INSTALLATION )
  54. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY  (See INSTALLATION )
  55. INSTALL NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY  (See INSTALLATION )
  56. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  (See INSTALLATION )
  57. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  58. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  59. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  (See INSTALLATION )
  60. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  (See INSTALLATION )
  61. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  (See INSTALLATION )
  62. INSTALL FRONT PILLAR GARNISH LH (w/o Curtain Shield Airbag)  (See INSTALLATION )
  63. INSTALL FRONT PILLAR GARNISH LH (w/ Curtain Shield Airbag)  (See INSTALLATION )
  64. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH  (See INSTALLATION )
  65. INSTALL FRONT PILLAR GARNISH RH (w/o Curtain Shield Airbag)  (See INSTALLATION )
  66. INSTALL FRONT PILLAR GARNISH RH (w/ Curtain Shield Airbag)  (See INSTALLATION )
  67. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH  (See INSTALLATION )
  68. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION )
  69. INSTALL METER HOOD SUB-ASSEMBLY  (See INSTALLATION )
  70. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  71. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See INSTALLATION )
  72. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
  73. ADJUST SPIRAL CABLE  (See INSTALLATION )
  74. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  75. INSTALL STEERING PAD  (See INSTALLATION )
  76. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  77. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  78. INSPECT STEERING WHEEL CENTER POINT
  79. INSTALL HEATER OUTLET WATER HOSE (See  INSTALLATION  )
  80. INSTALL HEATER INLET WATER HOSE (See  INSTALLATION  )
  81. INSTALL LIQUID PIPE SUB-ASSEMBLY (See  INSTALLATION  )
  82. INSTALL SUCTION PIPE SUB-ASSEMBLY (See  INSTALLATION  )
  83. CHARGE WITH REFRIGERANT (See  REFRIGERANT  )
  84. ADD ENGINE COOLANT (for 2AZ-FE)  (See COOLANT )
  85. ADD ENGINE COOLANT (for 2ZR-FE)  (See COOLANT )
  86. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  87. INSPECT FOR COOLANT LEAK (for 2AZ-FE)  (See COOLING SYSTEM )
  88. INSPECT FOR COOLANT LEAK (for 2ZR-FE)  (See COOLING SYSTEM )
  89. INSPECT STEERING PAD  (See INSTALLATION )
  90. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )

  91. WARM UP ENGINE (See  REPLACEMENT  )
  92. INSPECT FOR REFRIGERANT LEAK (See  ON-VEHICLE INSPECTION   )
