Headlight Assembly: Installation

HINT:

• Use the same procedures for the RH and LH sides.
• The procedures listed below are for the LH side.

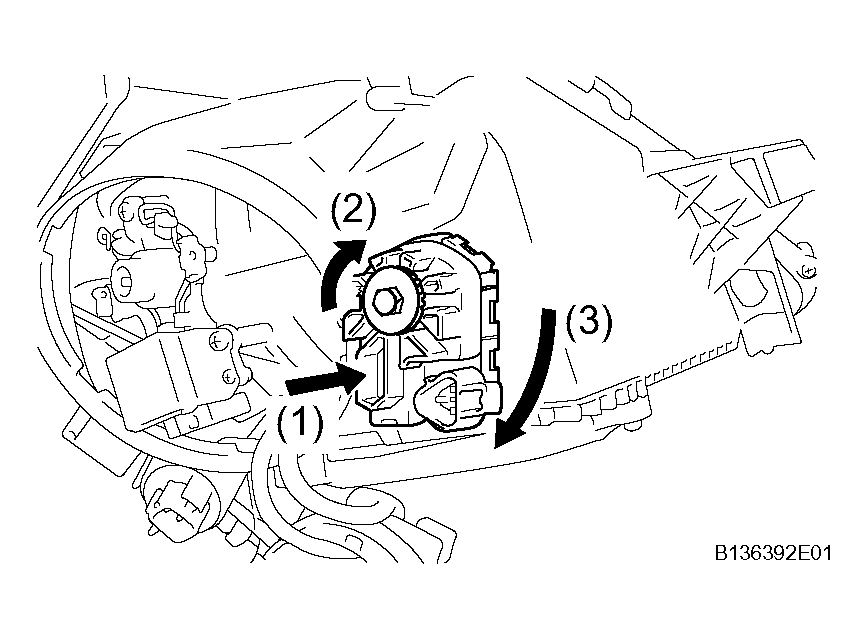

1. INSTALL HEADLIGHT LEVERING MOTOR ASSEMBLY LH (w/ HID Headlight System)
   1. Attach the headlight levering motor to the headlight.
   2. Rotate the aiming screw on the headlight leveling motor in the direction indicated by arrow (2) in Fig 1 and install the shaft.
   3. Rotate the headlight leveling motor in the direction indicated by arrow (3) in Fig 1 to install it.
      Fig 1: Installing Headlight Levering Motor Assembly LH (W/ HID Headlight System)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL HEADLIGHT LIGHT CONTROL ECU SUBASSEMBLY (w/ HID Headlight System)

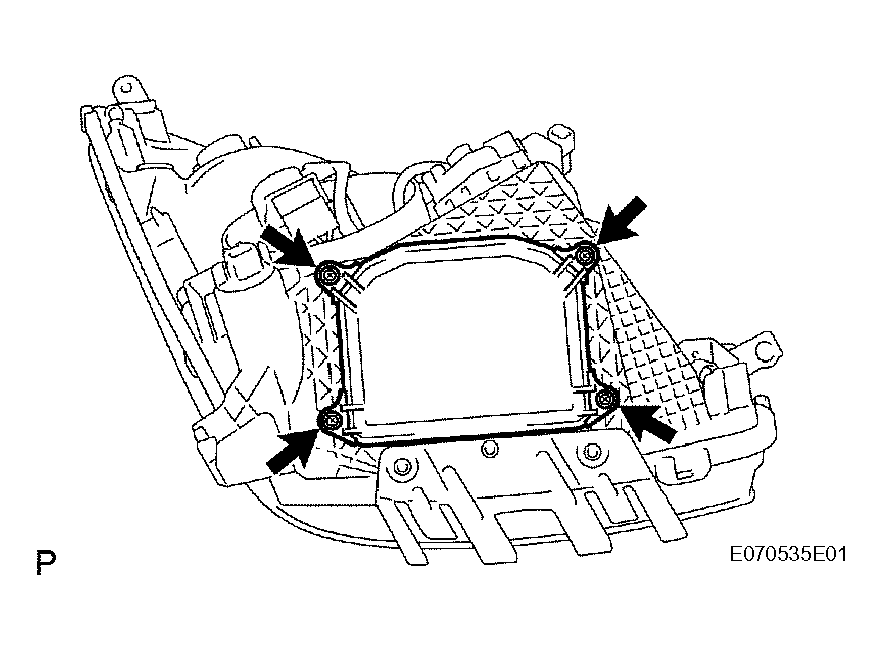

   1. Install the headlight cover and gasket with the 4 screws.
      Fig 2: Installing Headlight Cover And Gasket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

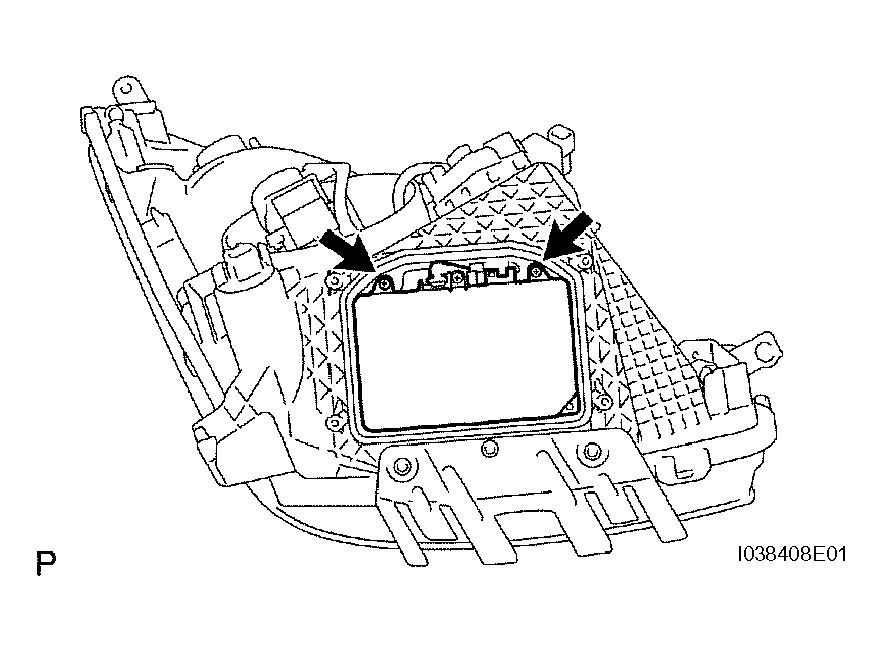

   2. Install the 2 screws.
      Fig 3: Installing Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Attach the claw and disconnect the connector, and then install the headlight light control ECU.

      HINT:

      If the bulb socket cannot be removed due to interference with the reflector, turn the aiming screw counterclockwise, move the reflector, and then install the bulb socket.

      Fig 4: Installing Headlight Light Control ECU

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL FRONT TURN SIGNAL LIGHT BULB
   1. Rotate the front turn signal light socket and bulb in the direction indicated by the arrow in Fig 5 to install them.
      Fig 5: Installing Front Turn Signal Light Bulb

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL CLEARANCE LIGHT BULB
   1. Turn the clearance light socket and bulb in the direction indicated by the arrow in Fig 6 to install them.
      Fig 6: Installing Clearance Light Bulb

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL HID HEADLIGHT BULB (w/ HID Headlight System)

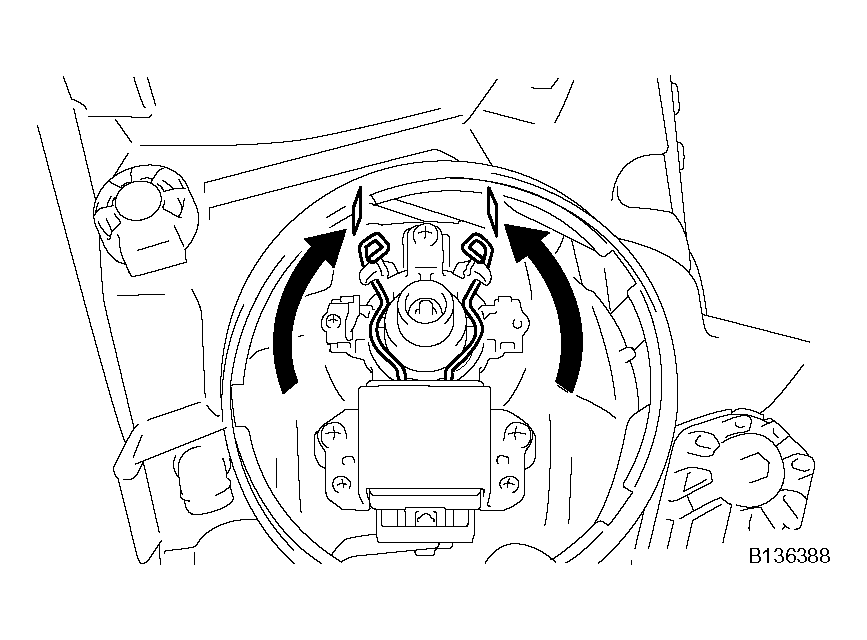

   1. Push the set spring in the direction indicated by the arrow in Fig 7 and install the discharge headlight bulb.
      NOTE: Do not touch the bulb glass with your fingers.
      Fig 7: Installing Discharge Headlight Bulb

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

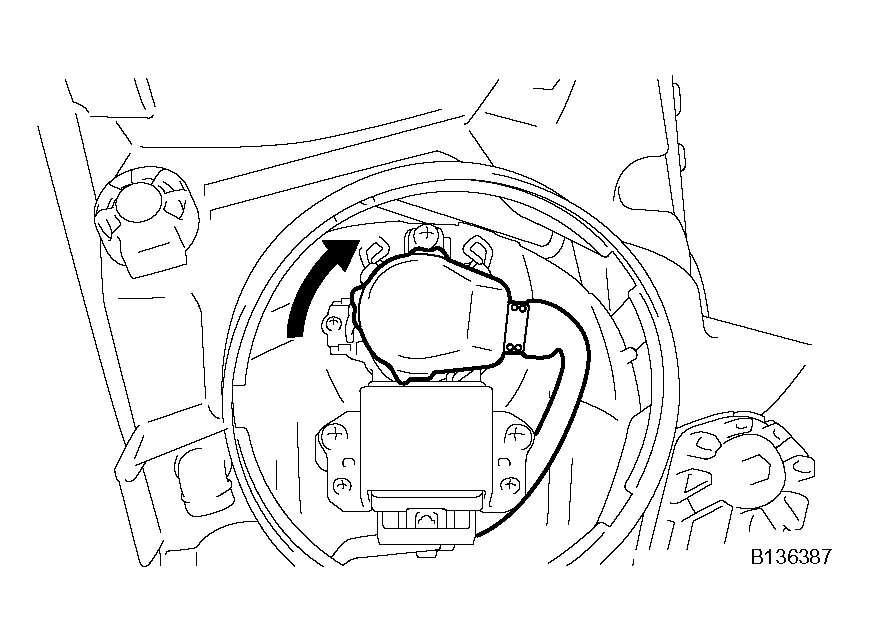

   2. Turn the headlight light control ECU socket in the direction indicated by the arrow in Fig 8 to install it.
      Fig 8: Installing Headlight Light Control ECU Socket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

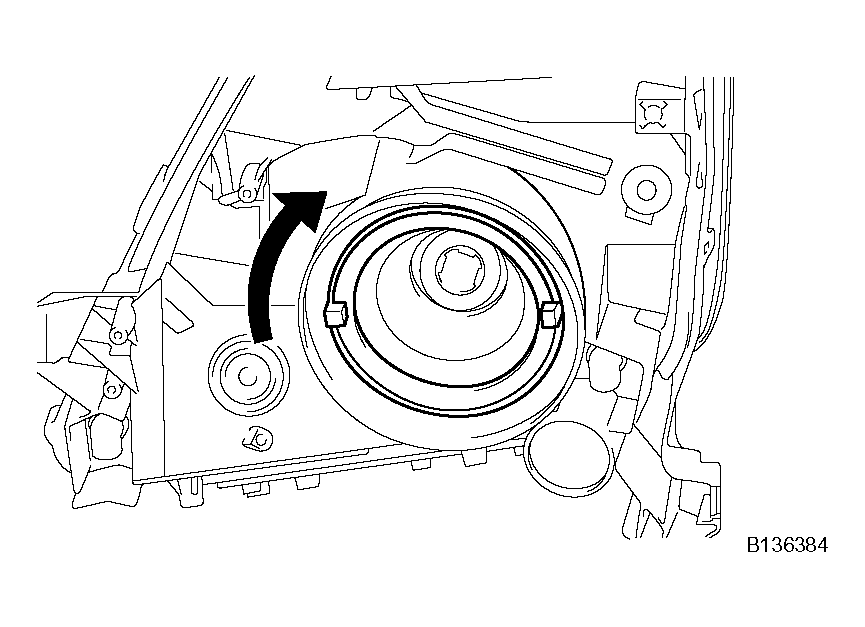

   3. Turn the headlight socket cover in the direction indicated by the arrow in Fig 9 to install it.
      Fig 9: Installing Headlight Socket Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL NO. 1 HEADLIGHT BULB (w/o HID Headlight System)

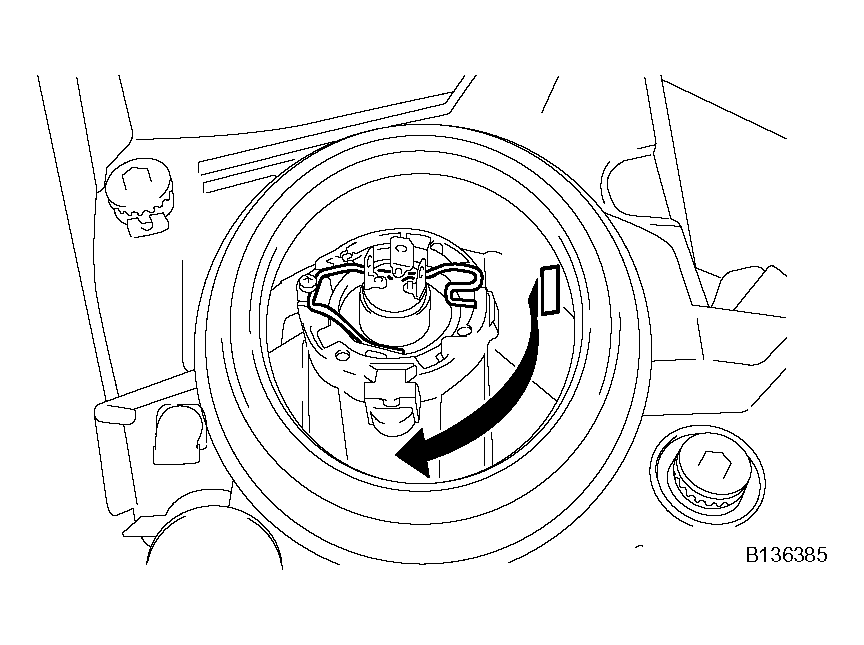

   1. Push the set spring in the direction indicated by the arrow in Fig 10 to install the No. 1 headlight bulb.
      NOTE: Do not touch the bulb glass with your fingers.
      Fig 10: Installing Number 1 Headlight Bulb

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Turn the headlight socket cover in the direction indicated by the arrow in Fig 11 to install it.
      Fig 11: Installing Headlight Socket Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

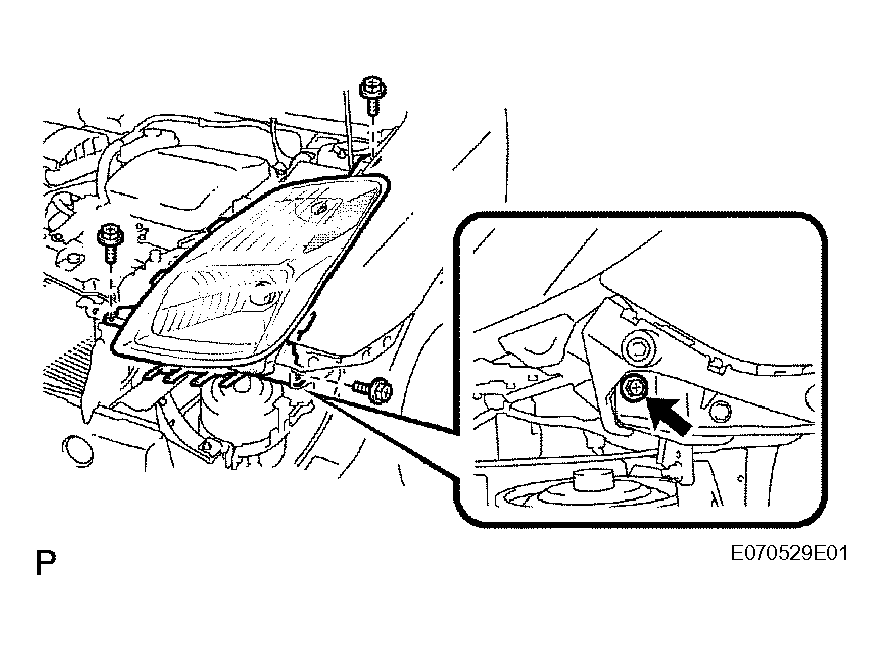

7. INSTALL HEADLIGHT ASSEMBLY LH
   1. Install the 3 screws.
   2. Connect all connectors and install the headlight.
8. INSTALL FRONT BUMPER COVER (See  INSTALLATION  )
9. INSTALL FRONT FENDER LINER RH (See  INSTALLATION  )
10. INSTALL FRONT FENDER LINER LH (See  INSTALLATION  )
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    Fig 12: Installing Headlight Assembly LH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
       NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
13. ADJUST HEADLIGHT AIM ONLY (See  ADJUSTMENT  )
14. ADJUST FOG LIGHT AIMING (See  ADJUSTMENT  )
