Power Window, Left Front Checking

Test conditions:

Battery voltage OK
Circuit breaker S43 OK
Fuse S14 (10A) on fuse/relay panel OK
Power window mechanically OK
Power windows in other doors work OK
Troubleshooting (Power Windows, Left & Right Front Checking ) completed but problem was not corrected.

NOTE:

Use connector Test Kit VW 1594 to make all necessary electrical connections.
For terminal designation of 32-point connector in A-pillar left or right, see COMPONENT LOCATIONS .

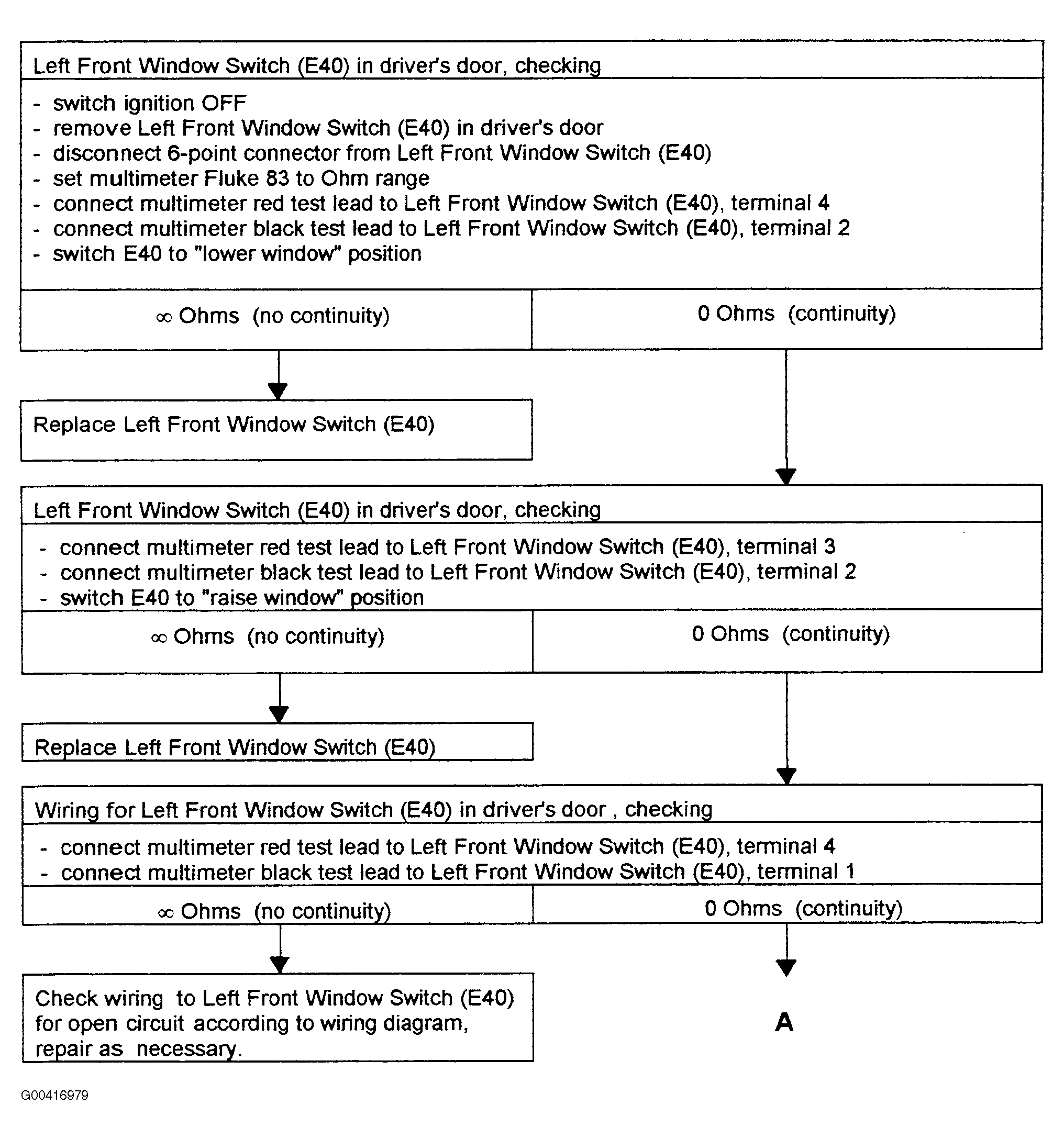

Fig 1: Left Front Power Window Troubleshooting (1 Of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

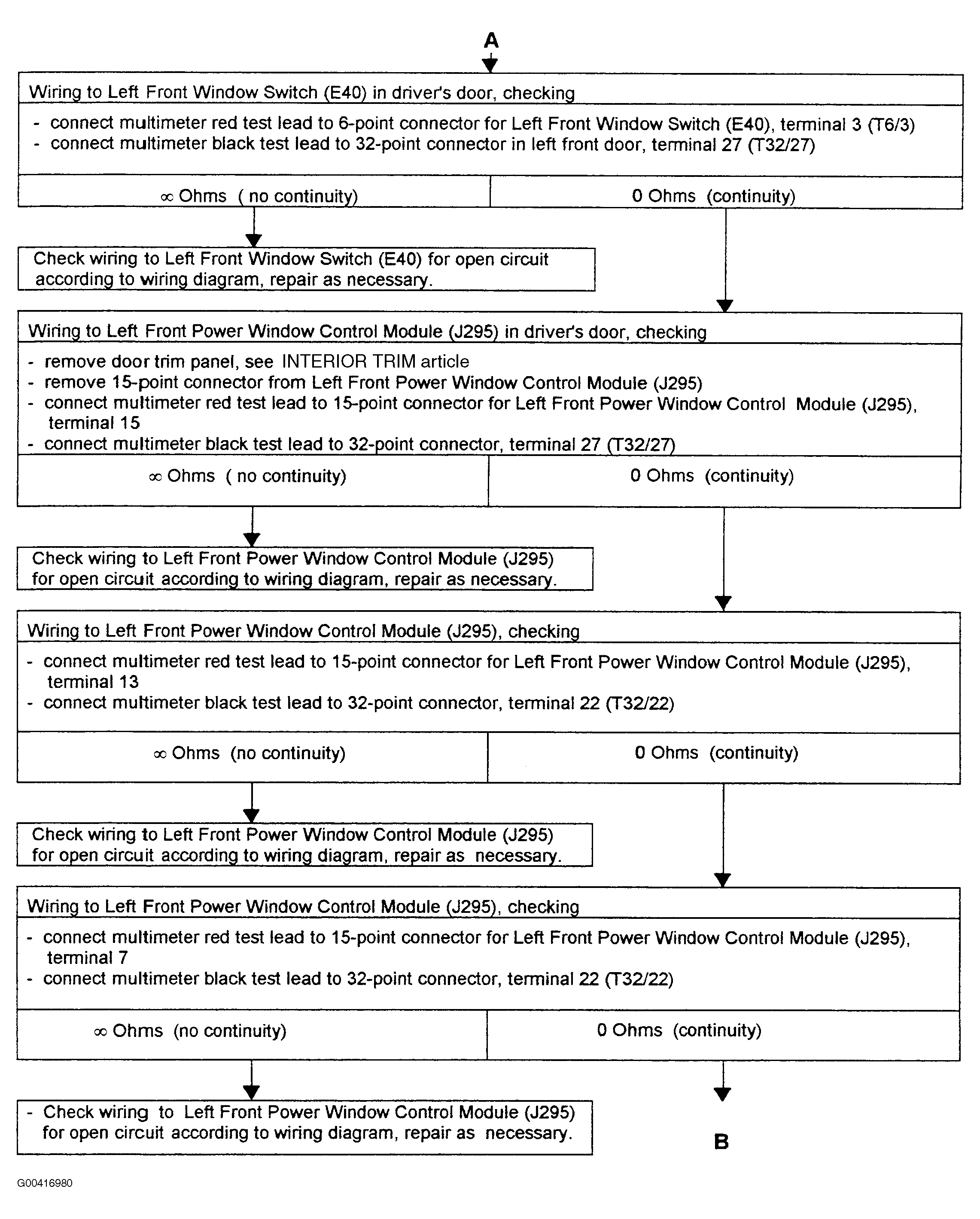

Fig 2: Left Front Power Window Troubleshooting (2 Of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

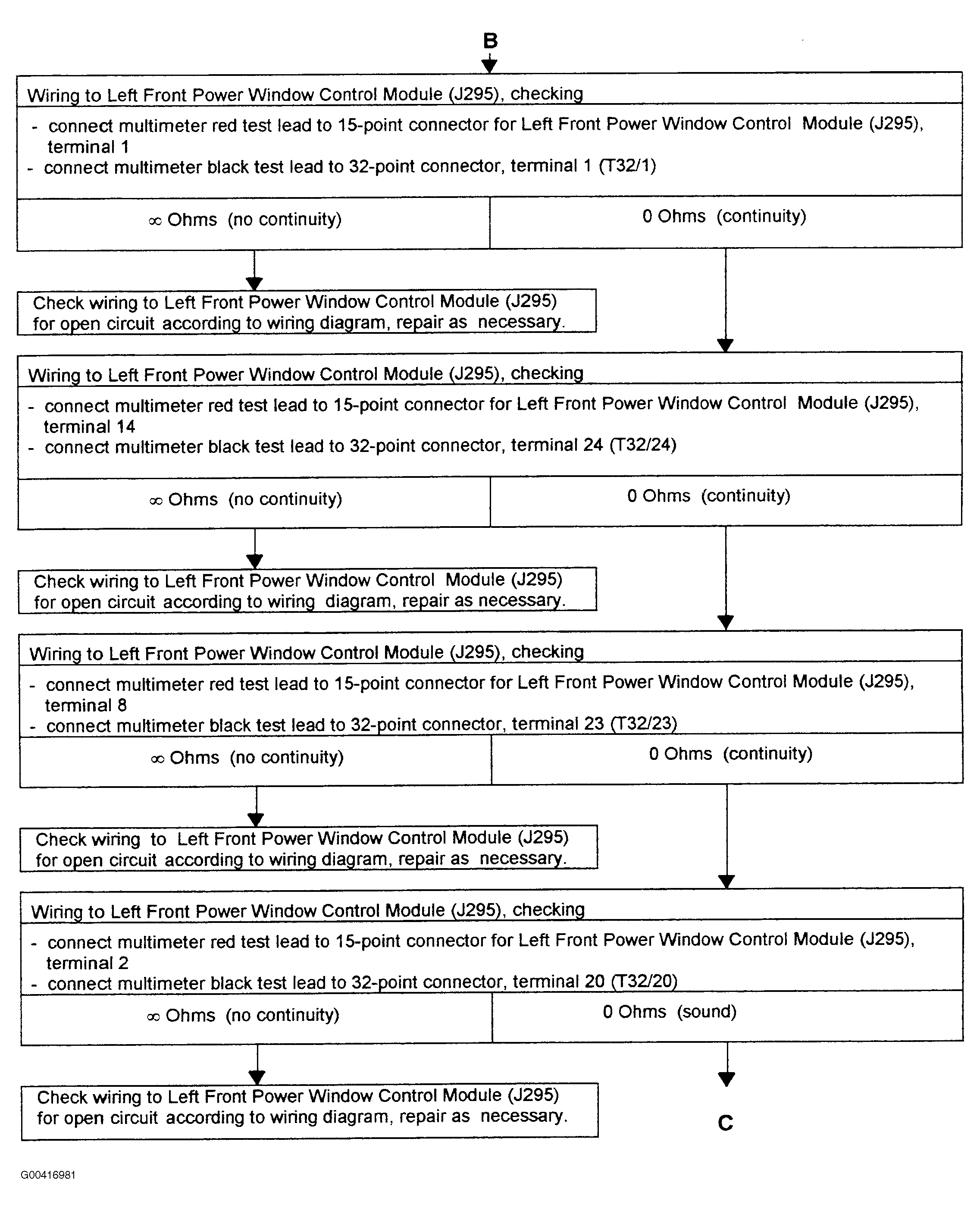

Fig 3: Left Front Power Window Troubleshooting (3 Of 4)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

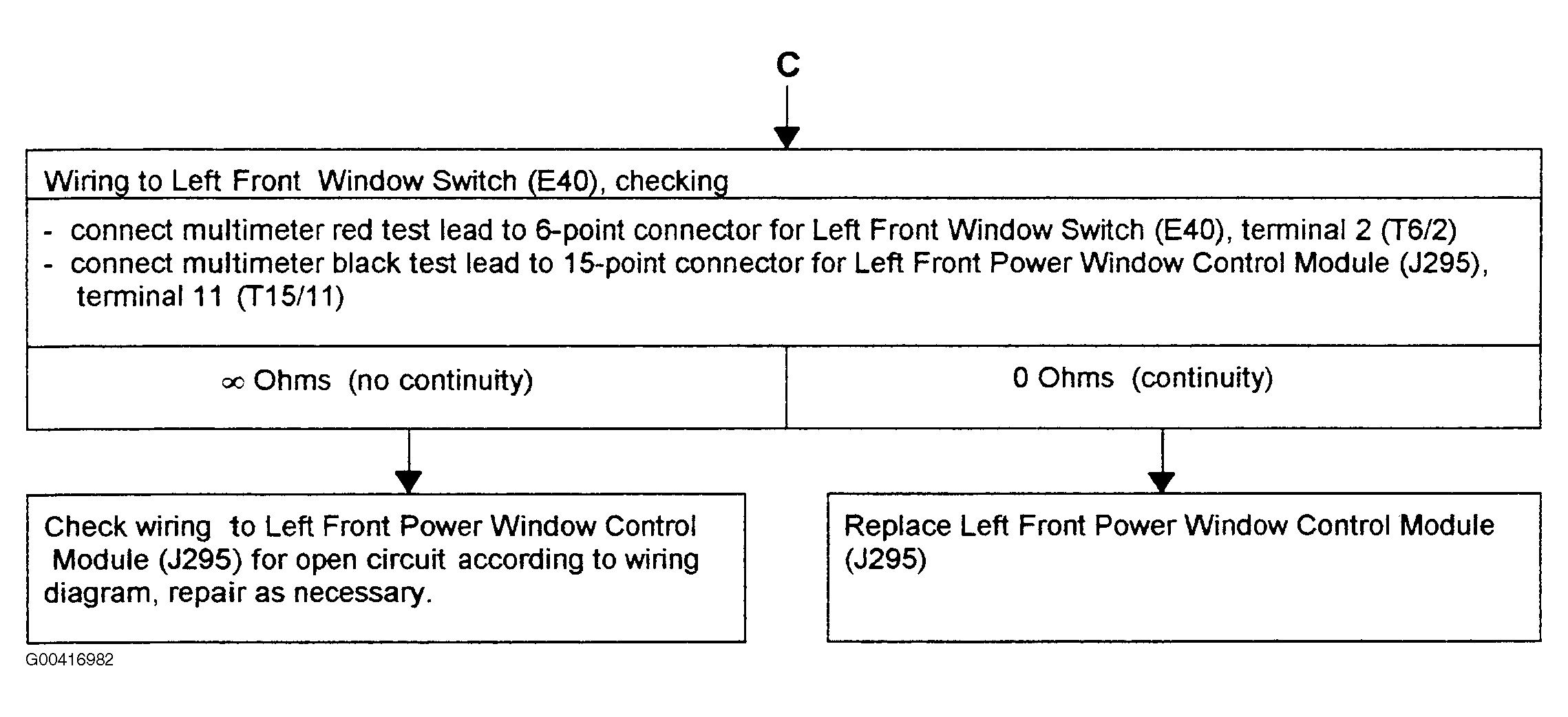

Fig 4: Left Front Power Window Troubleshooting (4 Of 4)
