Middle Panel Removal/Installation

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
  • Take care not to scratch the dashboard and related parts.
  1. Remove these items:
  2. On the passenger's side of the dashboard, remove the dashboard side lid (A).
    1. Remove the front door opening trim (B), as necessary.
    2. Gently pull out along the rear edge to release the clips and hooks (C)
    3. Gently pull out on the lid to release the top and bottom clips and the 3 hooks (D), then remove the lid.

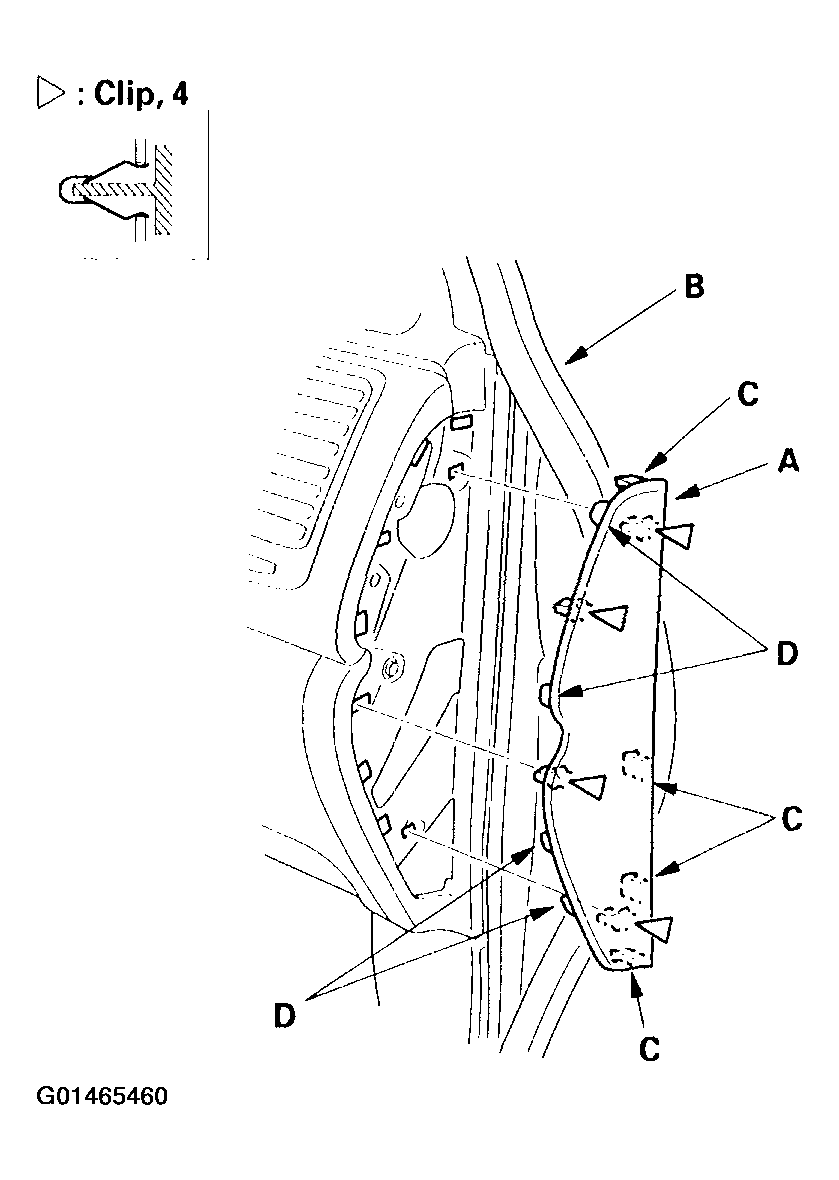

    Fig 1: Identifying Middle Panel Fastener Locations (1 Of 3)
    G01465460Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws securing the middle panel (A).

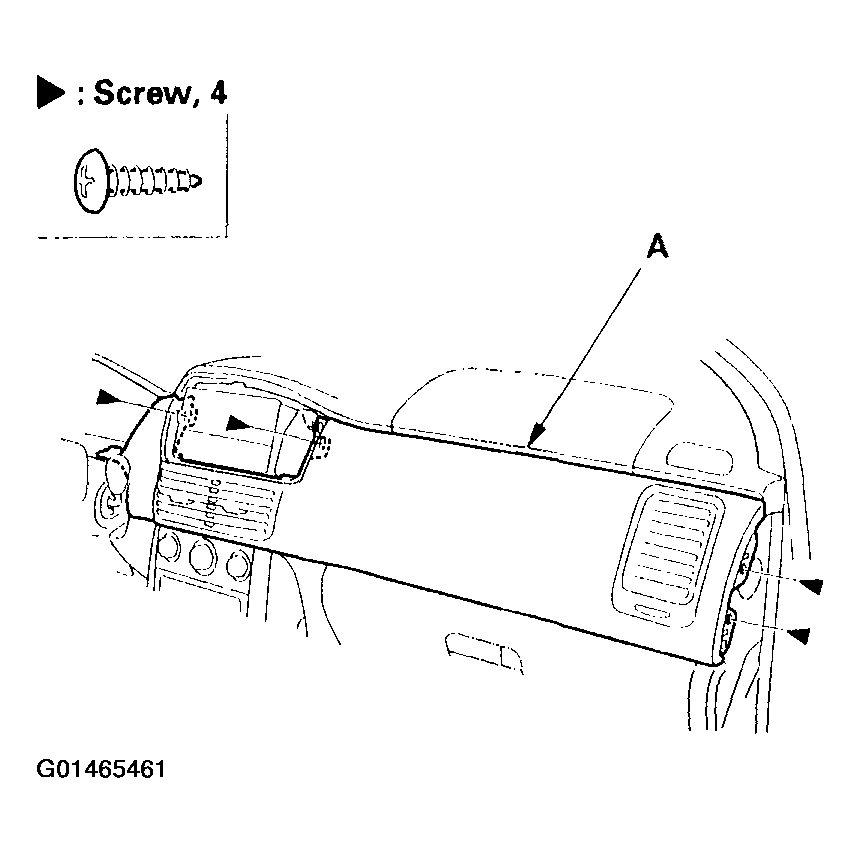

    Fig 2: Identifying Middle Panel Fastener Locations (2 Of 3)
    G01465461Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the middle panel (A).
    1. On the outside edge of the dashboard, release the hooks (B) from the dashboard.
    2. On the passenger's side, gently pull out along the top and bottom edges on the panel to detach the clips.
    3. On the driver's side, gently pull out on the panel to release the clips.

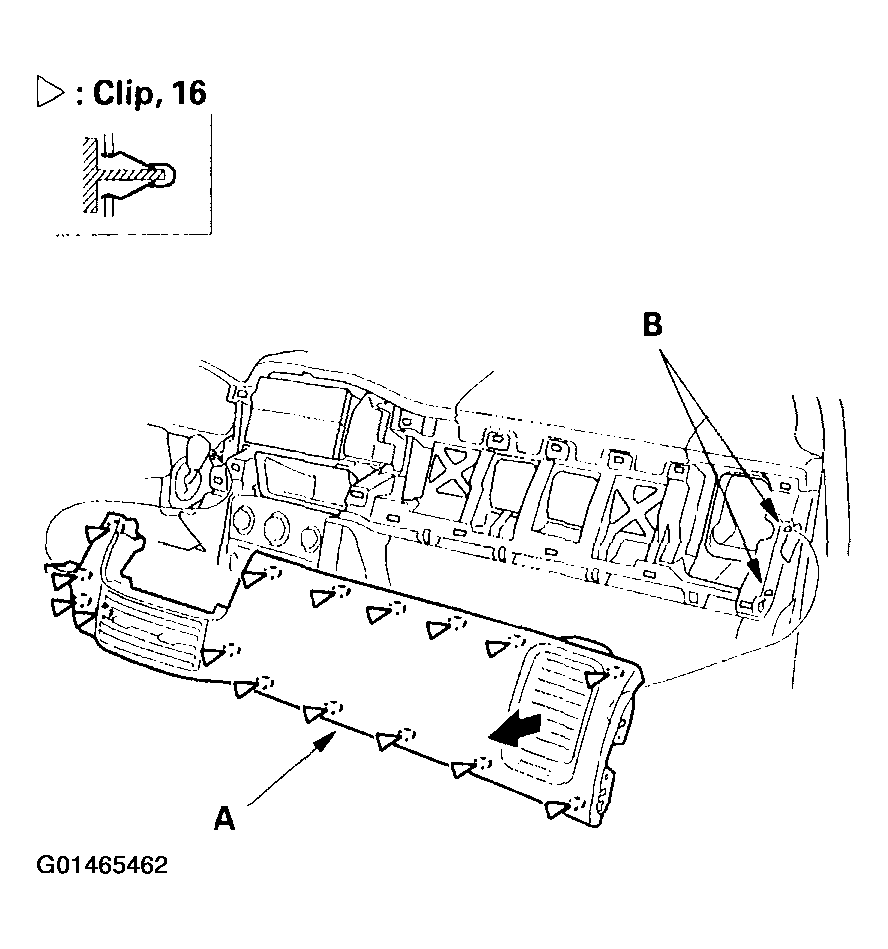

    Fig 3: Identifying Middle Panel Fastener Locations (3 Of 3)
    G01465462Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the panel in the reverse order of removal, and note these items:
    • Replace any damaged clips.
    • Push the clips and hooks into place securely.
