Pickup Box Endgate Latch Rod Replacement

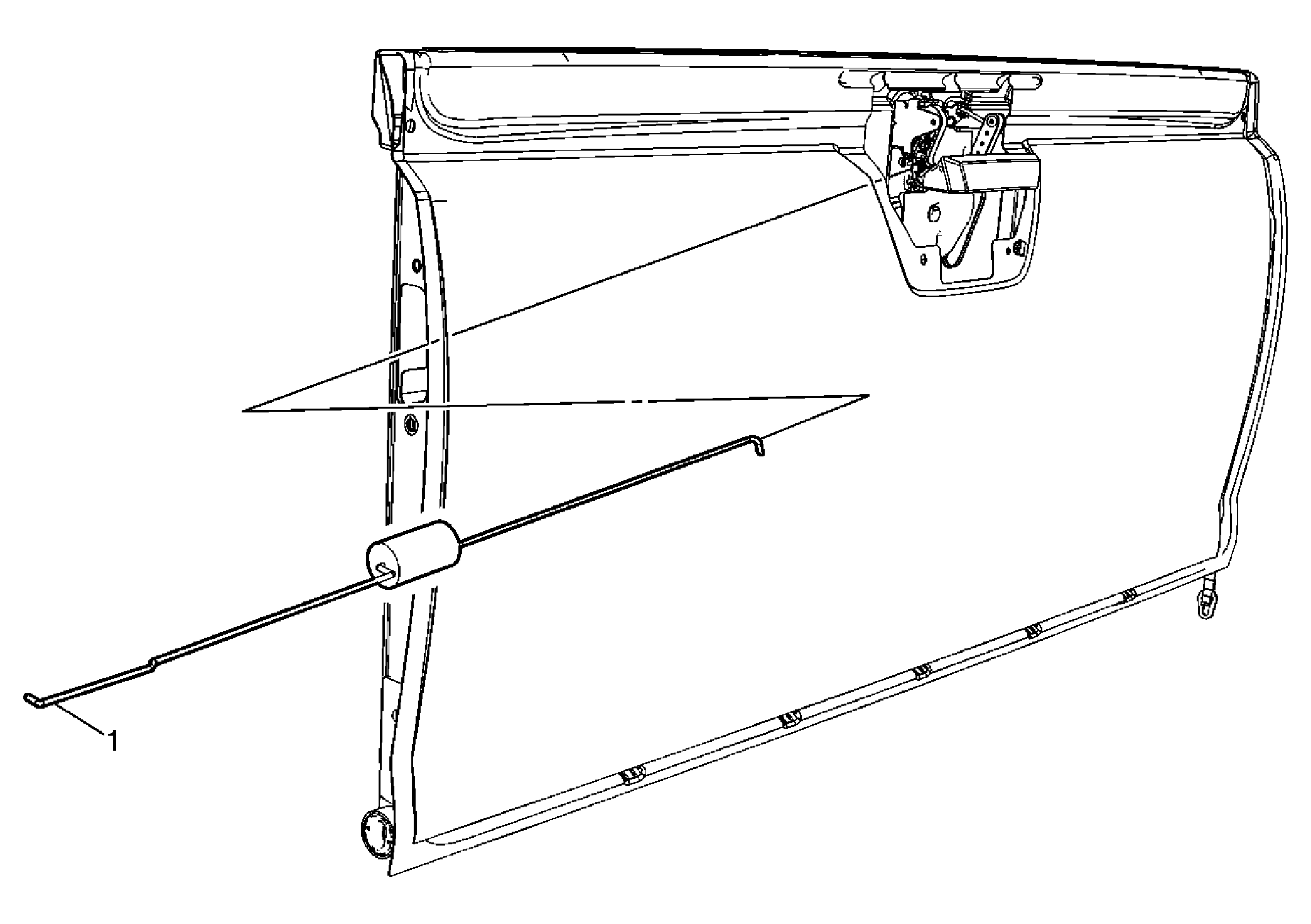

Fig 1: Pickup Box Endgate Latch Rod

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the endgate handle. Refer to Endgate Handle Replacement . Remove the endgate latch. Refer to Endgate Latch Replacement .
1	Endgate Latch Rod Assembly

Callout

Component Name

Preliminary Procedures

Endgate Latch Rod Assembly
