Switch Panel Removal/Installation
- Disconnect the negative battery cable.
- Remove the upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
- Remove the instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)

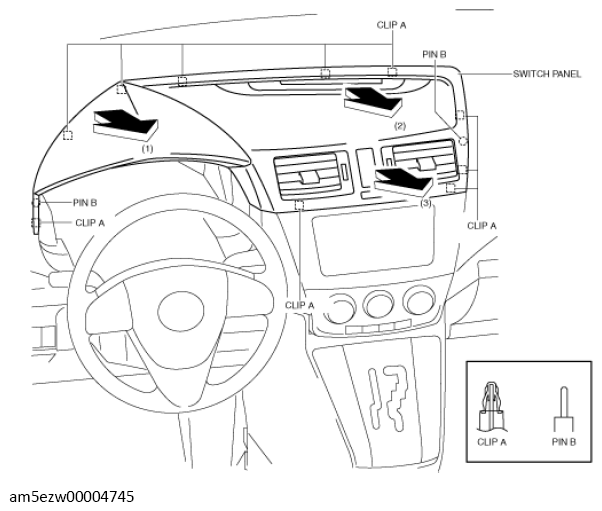

- Pull the switch panel in the direction of the arrow in the order of (1), (2), (3) and remove the switch panel while detaching the clips A and pins B.
- Disconnect the microphone connector. (vehicles with microphone)
- Remove the switch panel.
- Install in the reverse order of removal.
