| Intake manifold gasket Quantity: 4 Location of use: Intake manifold |
Throttle body gasket Quantity: 1 Location of use: Throttle body |
WARNING:
- A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

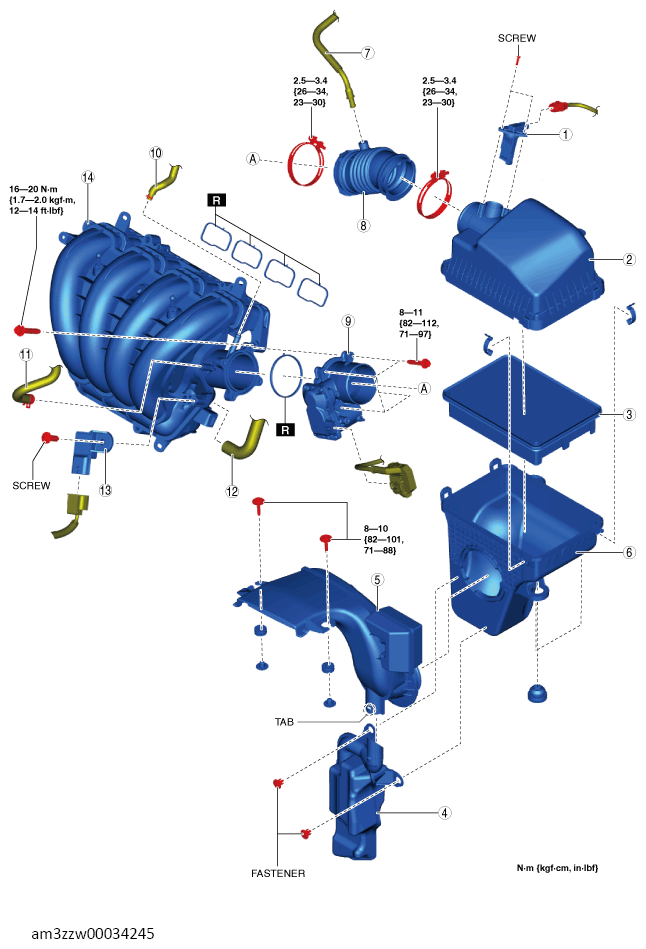

PART DESCRIPTION
| 1 | MAF sensor/IAT sensor No. 1 (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION .) |
| 2 | Air cleaner cover (See AIR CLEANER COVER INSTALLATION NOTE .) |
| 3 | Air cleaner element |
| 4 | Resonance chamber (See RESONANCE CHAMBER REMOVAL NOTE .) |
| 5 | Fresh-air duct (See FRESH-AIR DUCT REMOVAL NOTE .) |
| 6 | Air cleaner case (See AIR CLEANER CASE INSTALLATION NOTE .) |
| 7 | Ventilation hose (See VENTILATION HOSE INSTALLATION NOTE .) |
| 8 | Air hose (See AIR HOSE INSTALLATION NOTE .) |
| 9 | Throttle body (See THROTTLE BODY REMOVAL NOTE .) (See THROTTLE BODY INSTALLATION NOTE .) |
| 10 | Vacuum hose (See VACUUM HOSE REMOVAL/INSTALLATION .) |
| 11 | Evaporative hose (See EVAPORATIVE HOSE INSTALLATION NOTE .) |
| 12 | PCV hose |
| 13 | MAP sensor/IAT sensor No. 2 (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .) |
| 14 | Intake manifold (See INTAKE MANIFOLD REMOVAL NOTE .) (See INTAKE MANIFOLD INSTALLATION NOTE .) |
