Entertainment Location Index

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

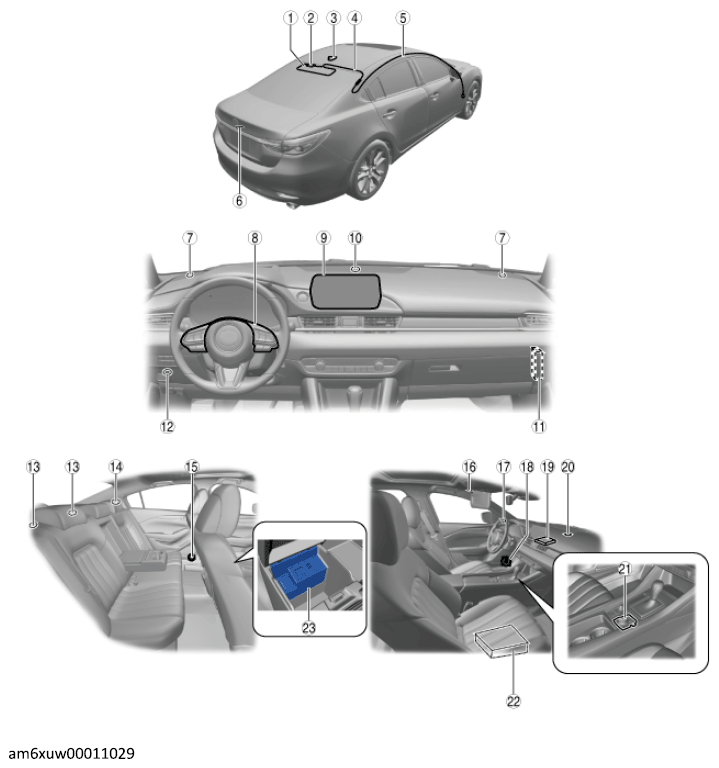

Fig 1: Entertainment Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Glass antenna (See GLASS ANTENNA INSPECTION .)
2	FM antenna amplifier (See ANTENNA AMPLIFIER REMOVAL/INSTALLATION .) (See ANTENNA AMPLIFIER INSPECTION .)
3	Center roof antenna (with SiriusXM satellite radio system) (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .) (See CENTER ROOF ANTENNA INSPECTION .)
4	Antenna amplifier (See ANTENNA AMPLIFIER REMOVAL/INSTALLATION .) (See ANTENNA AMPLIFIER INSPECTION .)
5	Antenna feeder (See ANTENNA AMPLIFIER REMOVAL/INSTALLATION .) (See ANTENNA AMPLIFIER INSPECTION .)
6	Rear mount camera (with parking assist system) (See REAR MOUNT CAMERA REMOVAL/INSTALLATION .) (See REAR MOUNT CAMERA INSPECTION .)
7	Front side speaker (with Bose *) (See FRONT SIDE SPEAKER REMOVAL/INSTALLATION .) (See FRONT SIDE SPEAKER INSPECTION .)
8	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION .) (See STEERING SWITCH INSPECTION .)
9	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .) (See CENTER DISPLAY DISASSEMBLY/ASSEMBLY .) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE .)
10	Front center speaker (with Bose *) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .) (See FRONT CENTER SPEAKER INSPECTION .)
11	Tuner and amp unit (TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION .) (See TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION .)
12	AudioPilot " microphone (with Bose*) (See AUDIOPILOT® MICROPHONE REMOVAL/INSTALLATION .)
13	Rear speaker (with Bose *) (See REAR SPEAKER REMOVAL/INSTALLATION .) (See REAR SPEAKER INSPECTION .)
14	Condenser (See CONDENSER REMOVAL/INSTALLATION .)
15	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .) (See REAR DOOR SPEAKER INSPECTION .)
16	Microphone (See MICROPHONE REMOVAL/INSTALLATION .)
17	Tweeter (See TWEETER REMOVAL/INSTALLATION .) (See TWEETER INSPECTION .)
18	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .) (See FRONT DOOR SPEAKER INSPECTION .)
19	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY .) (See Bluetooth® PAIRING PROCEDURE .) (See MAINTENANCE MONITOR OPERATION PROCEDURE .)
20	GPS antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
21	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION .)
22	Audio amplifier (with Bose *) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION .)
23	Auxiliary jack/USB port/SD card slot hub (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION .)
