Control Valve Assembly: Installation
Installation is the reverse order of removal.

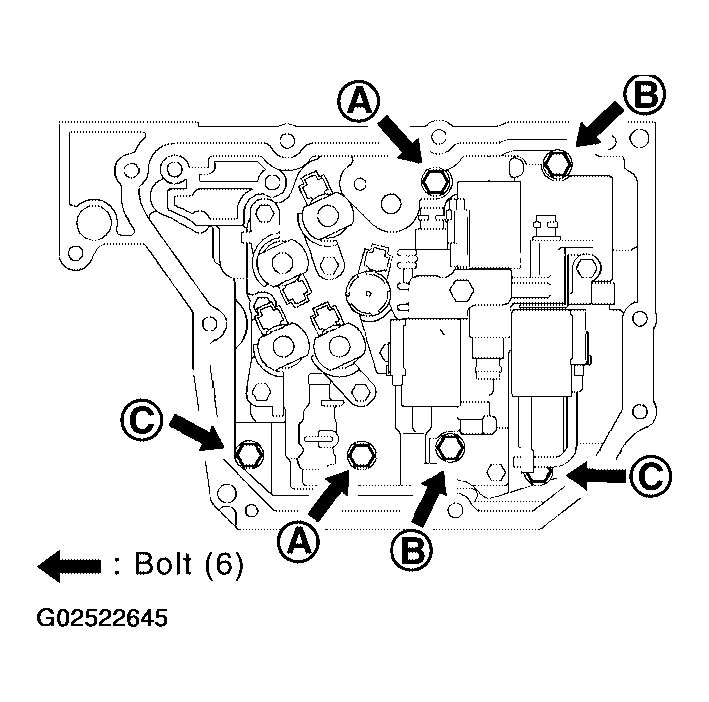

- Install bolts in sequence as shown. Refer to "COMPONENTS " for specified torque.
BOLT SYMBOL, LENGTH AND NUMBER OF BOLTS
| Bolt symbol | Length mm (in) | Number of bolts |
|---|---|---|
| A | 55 (2.17) | 2 |
| B | 50 (1.97) | 2 |
| C | 16 (0.63) | 2 |
