Oil Pump Cover: Installation

Secure the oil pump cover.
Tightening torque:

41 N.m (4.2 kgf-m, 30.4 ft-lb)

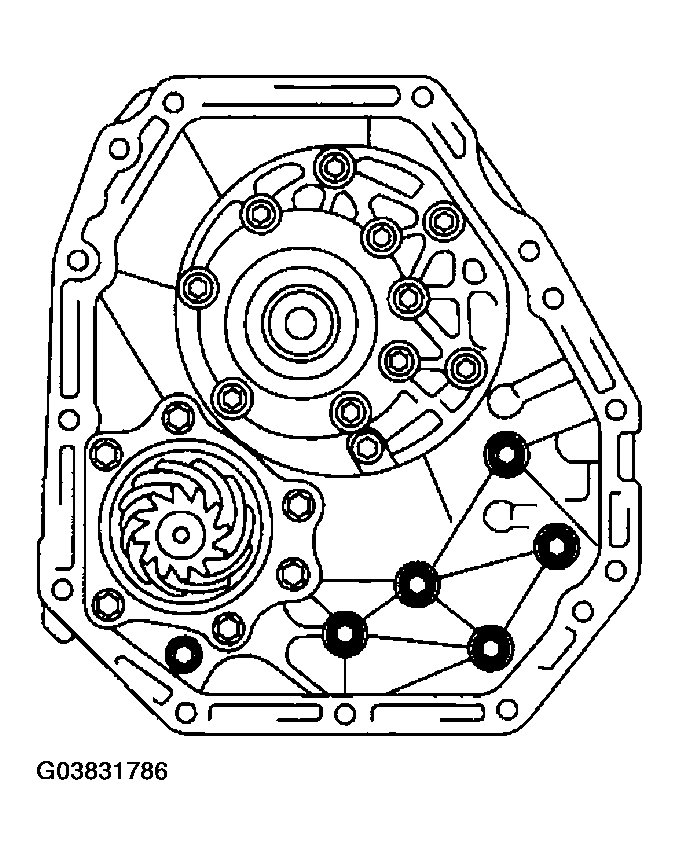

Fig 1: Installing Oil Pump Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the converter case assembly into transmission case assembly. < Ref. to , INSTALLATION , Torque Converter Assembly. >
Install the transmission harness connector to the stay.
Install the ATF filter pipe. < Ref. to , INSTALLATION , ATF Filter. >
Install the oil charge pipe with O-ring. < Ref. to , INSTALLATION , Oil Charge Pipe. >
Install the torque converter assembly. < Ref. to , INSTALLATION , Torque Converter Assembly. >
Install the transmission assembly into vehicle. < Ref. to , INSTALLATION , Automatic Transmission Assembly. >
