Rear Vehicle Speed Sensor: Installation

  1. Pass the harness assembly through the hole in transmission case.
    Fig 1: Passing Harness Assembly Through Hole In Transmission Case
    G03831704Courtesy of SUBARU OF AMERICA, INC.
  2. Install the securing bolt of transmission main case.

    Tightening torque:

    7 N.m (0.7 kgf-m, 5.2 ft-lb)

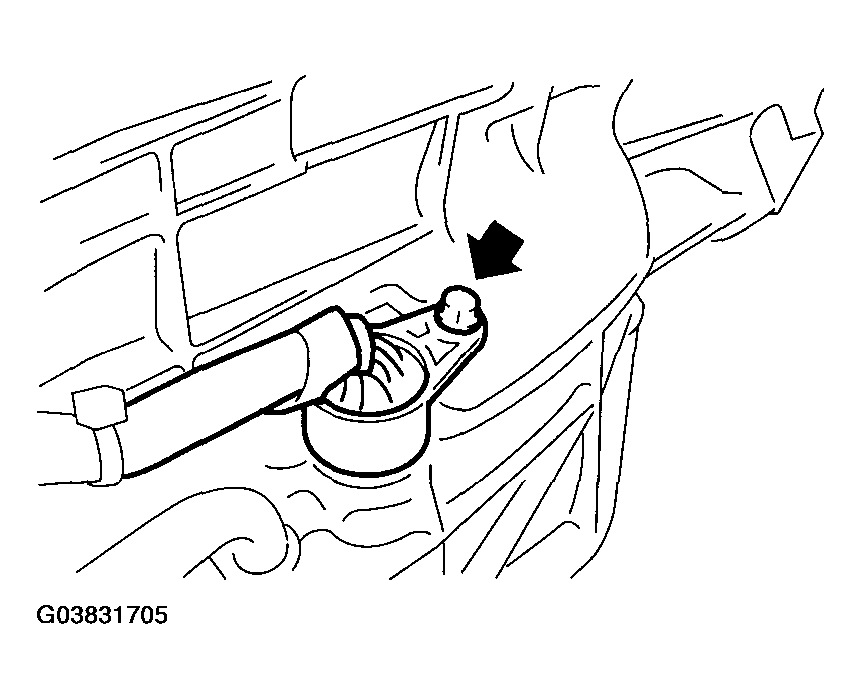

    Fig 2: Installing Securing Bolt Of Transmission Main Case
    G03831705Courtesy of SUBARU OF AMERICA, INC.
  3. Install the control valve body.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.8 ft-lb)

    NOTE: Be careful not to catch harness in.

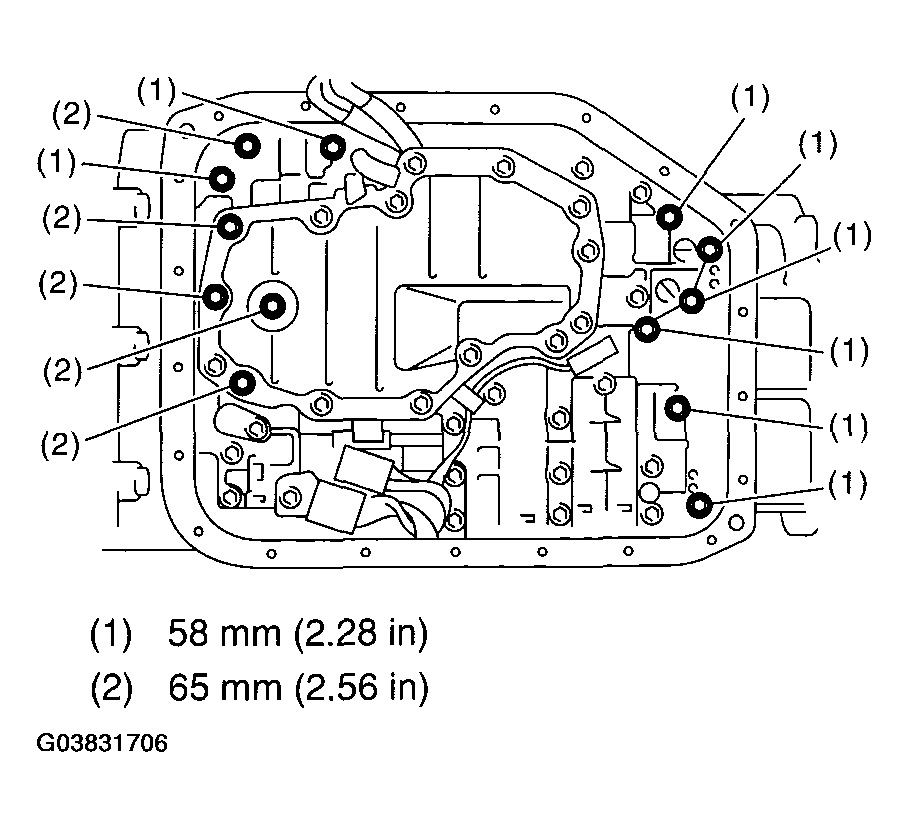

    Fig 3: Installing Control Valve Body
    G03831706Courtesy of SUBARU OF AMERICA, INC.
  4. Connect the control valve connector and front vehicle speed sensor connector.

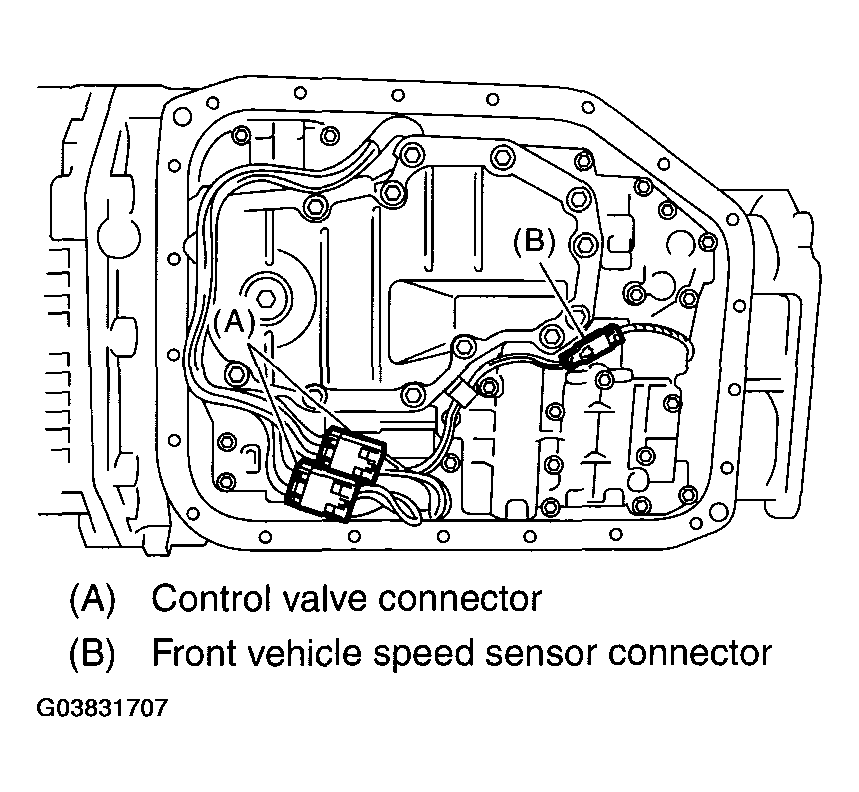

    Fig 4: Connecting Control Valve Connector And Front Vehicle Speed Sensor Connector
    G03831707Courtesy of SUBARU OF AMERICA, INC.
  5. Apply proper amount of liquid gasket to the entire oil pan mating surface.

    Liquid gasket:

    THREE BOND 1217B (Part No. K0877YA020)

    Fig 5: Applying Proper Amount Of Liquid Gasket To Entire Oil Pan Mating Surface
    G03831708Courtesy of SUBARU OF AMERICA, INC.
  6. Install the oil pan by equally tightening the bolts.

    Tightening torque:

    5 N.m (0.5 kgf-m, 3.7ft-lb)

  7. Install the rear vehicle speed sensor and turbine speed sensor 1, and then fasten the harness.

    Tightening torque:

    7 N.m (0.7 kgf-m, 5.2 ft-lb)

  8. Install a new aluminum washer and oil cooler pipe.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18 ft-lb)

  9. Install the oil charge pipe. < Ref. to , INSTALLATION , Oil Charge Pipe. >
  10. Install the transmission rear crossmember bolt.

    Tightening torque:

    70 N.m (7.1 kgf-m, 51.6 ft-lb)

  11. Install the propeller shaft. < Ref. to , INSTALLATION , Propeller Shaft. >
  12. Install the heat shield cover.
  13. Install the center exhaust pipe, rear exhaust pipes and muffler. (Turbo model)

    < Ref. to , INSTALLATION , Center Exhaust Pipe> < Ref. to , INSTALLATION , Rear Exhaust Pipe.> < Ref. to , INSTALLATION , Muffler. >

  14. Install the rear exhaust pipe and muffler. (Non-turbo model) < Ref. to , INSTALLATION , Rear Exhaust Pipe.> < Ref. to , INSTALLATION , Muffler. >
  15. Lower the vehicle.
  16. Install the transmission connector to the stay, and then connect the connector.
  17. Install the intercooler. (Turbo model) < Ref. to , INSTALLATION , lntercooler. >
  18. Install the air intake chamber. (Non-turbo model) < Ref. to , INSTALLATION , Air Intake Chamber. >
  19. Pour ATF through the oil charge pipe. < Ref. to , REPLACEMENT , Automatic Transmission Fluid. >
  20. Check the level and leaks of ATF. < Ref. to , INSPECTION , Automatic Transmission Fluid. >
  21. Execute the learning control promotion. < Ref. to , PROCEDURE , Learning Control. >
