Lighting Systems Location Index: Interior

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

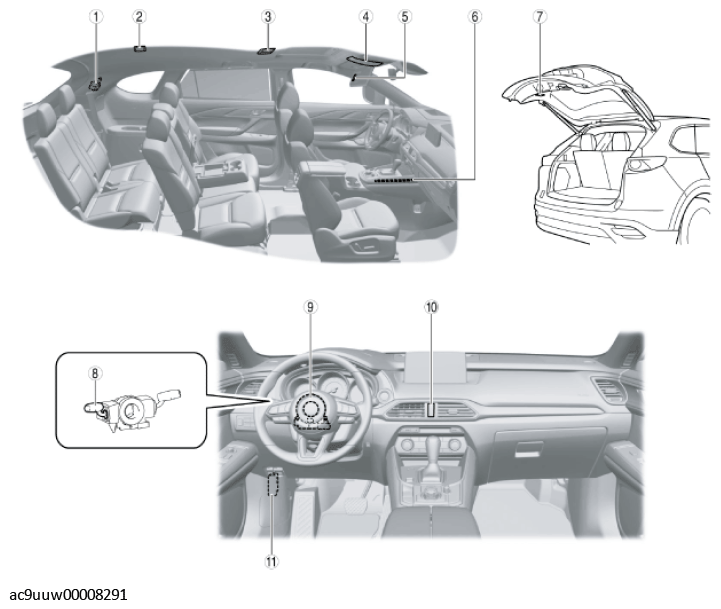

Fig 1: Lighting Systems Related Components - Interior

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Brake light unit (with smart brake support (SBS)) (See BRAKE LIGHT UNIT REMOVAL/INSTALLATION .) (See BRAKE LIGHT UNIT INSPECTION .)
2	Rear map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See REAR MAP LIGHT REMOVAL/INSTALLATION .) (See REAR MAP LIGHT BULB REMOVAL/INSTALLATION .)
3	Center map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See CENTER MAP LIGHT REMOVAL/INSTALLATION .) (See CENTER MAP LIGHT BULB REMOVAL/INSTALLATION .) (See CENTER MAP LIGHT INSPECTION .)
4	Front map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See FRONT MAP LIGHT REMOVAL/INSTALLATION .) (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT MAP LIGHT INSPECTION .)
5	Vanity mirror illumination (with vanity mirror illumination) (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION .) (See VANITY MIRROR ILLUMINATION INSPECTION .)
6	Front console ambient light (with front console ambient light) (See FRONT CONSOLE AMBIENT LIGHT REMOVAL/INSTALLATION .)
7	Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION .) (See CARGO COMPARTMENT LIGHT INSPECTION .)
8	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION .) (See LIGHT SWITCH INSPECTION .) (See FRONT FOG LIGHT SWITCH INSPECTION .)
9	Steering angle sensor (with smart city brake support (SCBS)) (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION .) (See STEERING ANGLE SENSOR INSPECTION .)
10	Hazard warnings witch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .) (See HAZARD WARNING SWITCH INSPECTION .)
11	Auto leveling control module (without adaptive front lighting system (AFS)) (See AUTO LEVELING CONTROL MODULE REMOVAL/INSTALLATION .) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
