Reverse Brake Assembly: Installation

Select a washer. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Forward Clutch Assembly>ADJUSTMENT .
Install the selected washer to the reverse brake housing.

Courtesy of SUBARU OF AMERICA, INC.
Install the thrust bearing to the reverse brake housing.
NOTE: Face the temper color surface to the reverse brake side.

Courtesy of SUBARU OF AMERICA, INC.
Remove the internal gear from the forward clutch assembly, and install it to the reverse brake housing.

Courtesy of SUBARU OF AMERICA, INC.
Install the O-rings.
NOTE:
- Install a new O-ring.
- Apply CVTF to the O-rings.
Courtesy of SUBARU OF AMERICA, INC.
Install the reverse brake assembly and internal gear as a unit to the drive pinion retainer.
NOTE: Slowly rotate the input shaft by hand to engage the internal gear and pinion gear of planetary carrier.

Tightening torque:

37 N.m (3.8 kgf-m, 27.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the O-ring to the lubrication pipe.
NOTE:
- Install a new O-ring.
- Apply CVTF to the O-rings.
Courtesy of SUBARU OF AMERICA, INC.

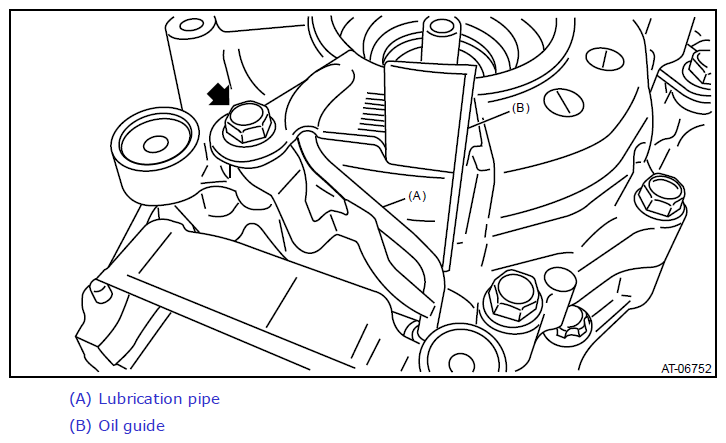

Install the lubrication pipe and oil guide.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the manual valve assembly and separator plate.
Tightening torque:

9 N.m (0.9 kgf-m, 6.6 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the primary pulley, secondary pulley and variator chain. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Primary Pulley and Secondary Pulley>INSTALLATION .
Select shims for pulley alignment. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Primary Pulley and Secondary Pulley>ADJUSTMENT .
Install the reduction drive gear. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Reduction Drive Gear>INSTALLATION .
Install the transmission case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Transmission Case>INSTALLATION .
Install the transmission control device. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Transmission Control Device>INSTALLATION .
Install the oil strainer and oil pan. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Oil Pan and Strainer>INSTALLATION .
Install the reduction driven gear assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Reduction Driven Gear>INSTALLATION .
Install the transfer driven gear assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Transfer Driven Gear>INSTALLATION .
Install the transfer clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Transfer Clutch>INSTALLATION .
Install the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Parking Pawl>INSTALLATION .
Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Extension Case>INSTALLATION .
Install the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Inhibitor Switch>INSTALLATION .
Install the secondary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Secondary Speed Sensor>INSTALLATION .
Install the primary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Primary Speed Sensor>INSTALLATION .
Install the turbine speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Turbine Speed Sensor>INSTALLATION .
Install the transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Transmission Harness>INSTALLATION .
Install the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Control Valve Body>INSTALLATION .
Install the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Air Breather Hose>INSTALLATION .
Install the transmission assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Automatic Transmission Assembly>INSTALLATION .
