Dashboard Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Front fender molding (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    4. Cowl panel (See COWL PANEL REMOVAL/INSTALLATION .)
    5. Windshield wiper motor (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION .)
    6. Front door (See FRONT DOOR REMOVAL/INSTALLATION .)
    7. Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)
    8. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    9. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    10. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
    11. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
    12. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
    13. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    14. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    15. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    16. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    17. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    18. Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    19. Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    20. Side panel (See SIDE PANEL REMOVAL/INSTALLATION .)
    21. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    22. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    23. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    24. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    25. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    26. Knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION .)
    27. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
    28. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    29. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    30. Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION .)
    31. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    32. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    33. Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION .)
    34. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
    35. Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)
    36. Heater case (See A/C UNIT REMOVAL/INSTALLATION .)
    37. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    38. Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    39. Front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
    40. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    41. Rear heat duct (See REAR HEAT DUCT REMOVAL/INSTALLATION .)
  3. Disconnect the A/C unit connectors.
  4. Disconnect the dashboard harness connectors.
  5. Remove the bolts A.

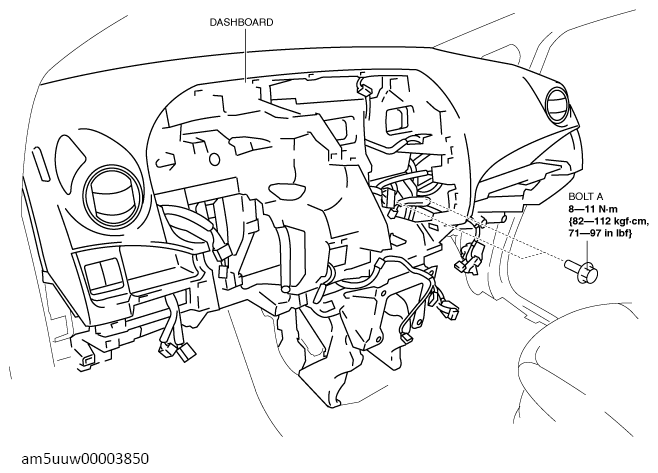

    Fig 1: Dashboard Bolts A With Torque Specification
    G13728345Courtesy of MAZDA MOTORS CORP.
  6. Remove the nuts B.

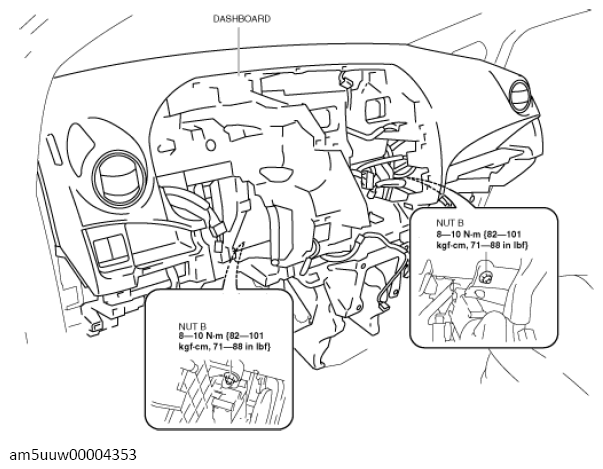

    Fig 2: Dashboard Nuts B With Torque Specification
    G13728346Courtesy of MAZDA MOTORS CORP.
  7. Remove the bolts C.

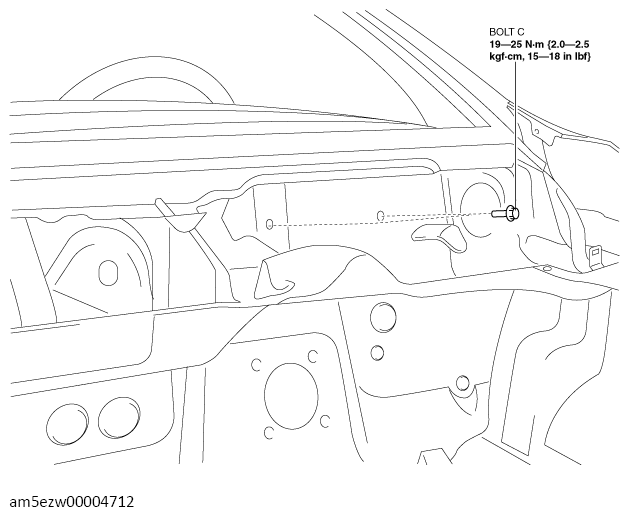

    Fig 3: Dashboard Bolts C With Torque Specification
    G13728347Courtesy of MAZDA MOTORS CORP.
  8. Remove the caps then set the rolled paper.
  9. Remove the bolts D and bolts E.

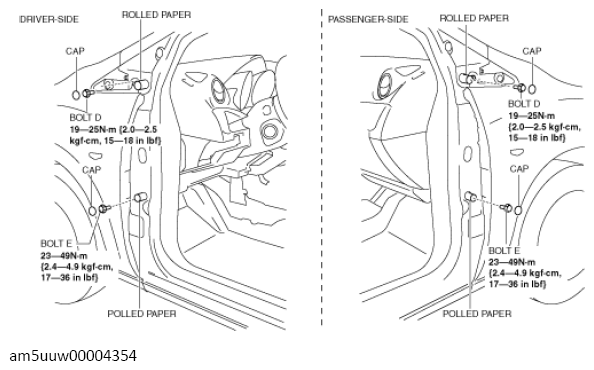

    Fig 4: Rolled Paper Bolts (D, E) With Torque Specification
    G13728348Courtesy of MAZDA MOTORS CORP.
  10. Remove the nuts F and bolts G then remove the center bracket.

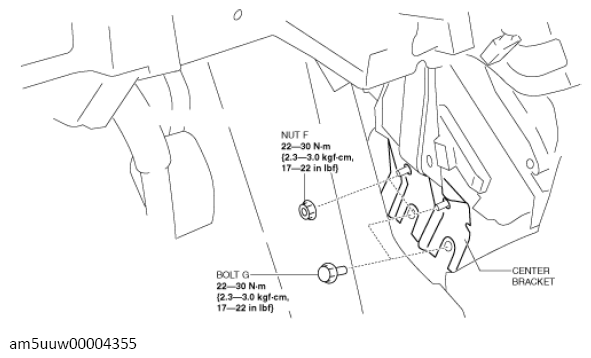

    Fig 5: Center Bracket, Nuts F And Bolts G With Torque Specification
    G13728349Courtesy of MAZDA MOTORS CORP.
  11. Remove the bolts H. (See BOLT H INSTALLATION NOTE .)

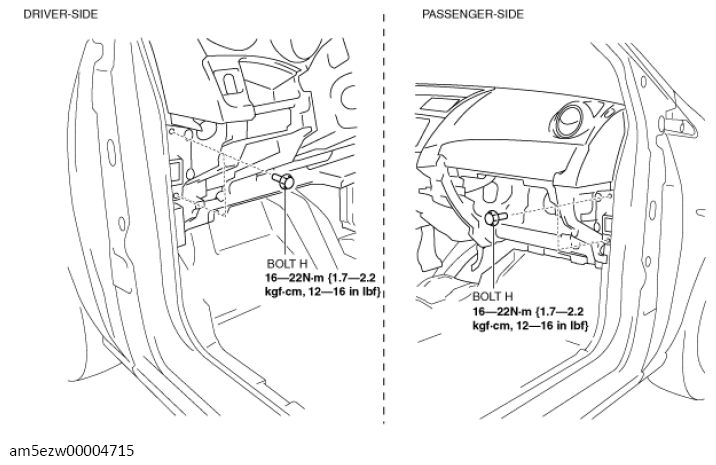

    Fig 6: Dashboard Bolts H With Torque Specification
    G13728350Courtesy of MAZDA MOTORS CORP.

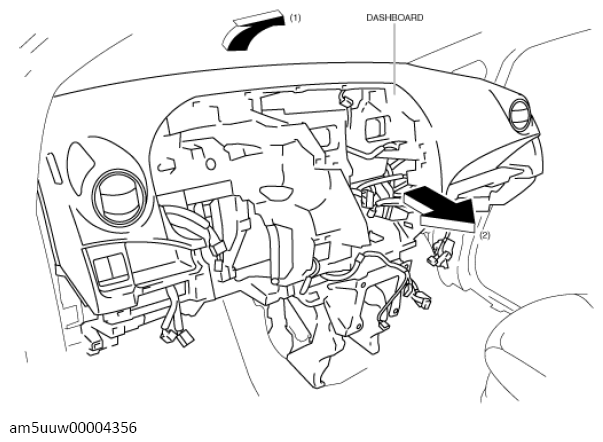

  12. Pull the dashboard in the direction of arrow (1), (2) shown in the figure.
    G13728351Courtesy of MAZDA MOTORS CORP.

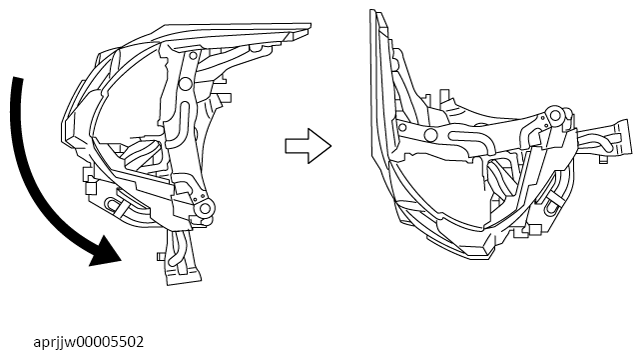

  13. Turn the dashboard 90°in the direction of the arrow shown in the figure.
    G13728352Courtesy of MAZDA MOTORS CORP.
  14. Take the dashboard off from the front driver-side door opening.
    CAUTION:
    • Removing the dashboard without supporting it can be dangerous. The dashboard may fall and injure you. Always perform the following procedure with at least another person.
    NOTE:
    • If the dashboard frame is scratched during removal, apply a coat of black paint for rust protection to protect the painted surface of the dashboard frame.
    • If the hard-plastic part of the dashboard is repaired, apply the following paint to the repaired area.
    Color Repair paint No.
    Black 02 COLOR
  15. Install in the reverse order of removal.
