Ventilation system, function - GF83.10-P-2000P
MODEL 203.0/ 2/ 7
Shown on model 203 up to 31.3.03
Function

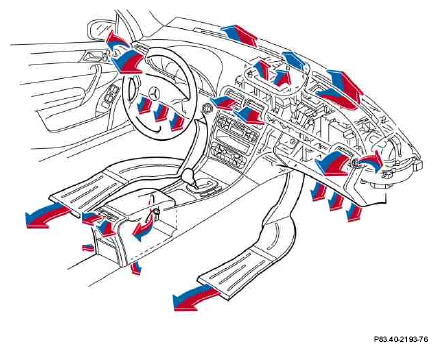

The ventilation prevents windows from fogging up, provides fresh air to the occupants and ensures that uniform and pleasant temperatures in the interior are reached quickly.
In normal operation, when the vehicle is stationary or to increase the air quantity, through-ventilation is achieved with the assistance of the blower motor. Fresh air is drawn in via the air inlet in the engine hood and via the fresh air/air recirculation flap (fresh air position).
Depending on setting of control and operating unit, the air is directed through the air ducts to the air vents in the interior.
In air recirculation mode, air is drawn in from the vehicle interior by the blower motor through the fresh air/air recirculation flap (recirculated air position).
When the ignition is switched off, the fresh air/air recirculation flap is automatically moved into a 50 % fresh air and 50 % recirculated air position. This achieves a significant reduction in the flap closing forces.
Air flows into the trunk through ventilation slots below the rear shelf and flows out of the vehicle again through the rear ventilation.
| Heating push button control unit, location/task | On vehicles up to 23.4.04 without code (580) Air conditioning (or Tempmatic for USA) or without code (580) Automatic air conditioning or without code (581) Automatic air conditioning or without code (581) Comfort automatic air conditioning | GF83.20-P-2120PP | |
| Control and operating unit for automatic air conditioning, location/task | On vehicles up to 31.5.01 with code (580) Air conditioning system or Tempmatic for USA or as of 1.6.01 up to 23.4.04 with code (580) Automatic air conditioning | GF83.40-P-2180PP | |
| On vehicles as from 24.4.04 without code (581) Comfort automatic air conditioning | GF83.40-P-2180PQ | ||
| Comfort automatic air conditioning control and operating unit, location/task | In vehicles up to 31.5.01 with code (581) Automatic air conditioning or from 1.6.01 to 23.4.04 with code (581) Comfort automatic air conditioning | GF83.40-P-2181PP | |
| On vehicles as of 24.4.04 with code (581) Comfort automatic air conditioning | GF83.40-P-2181PQ | ||
| Air ducting, location/task/function | GF83.10-P-2182P | ||
| Actuator motor automatic heater, location/task/function | On vehicles up to 23.4.04 without code (580) Air conditioning (or Tempmatic for USA) or without code (580) Automatic air conditioning or without code (581) Automatic air conditioning or without code (581) Comfort automatic air conditioning | GF83.25-P-2180P | |
| Actuator motors for automatic air conditioning, location/task/function | On vehicles up to 31.5.01 with code (580) Air conditioning (or Tempmatic for USA) or as of 1.6.01 with code (580) Automatic air conditioning or as of 24.4.04 without code (581) Comfort automatic air conditioning | GF83.40-P-2182P | |
| Actuator motors for comfort automatic air conditioning, location/task/function | In vehicles up to 31.5.01 with code (581) automatic air conditioning or as of 1.6.01 with code (581) comfort automatic air conditioning | GF83.40-P-2183P | |
| Blower motor, location/task/function | GF83.10-P-2140P | ||
| Blower regulator, location/task/function | GF83.10-P-2141P | ||
| Rear blower motor, location/task/function | On vehicles as of 1.6.01 with code (581) Comfort automatic air conditioning | GF83.10-P-2168P | |
| Control unit for rear blower motor, location/task/ design/function | On vehicles as of 1.6.01 with code (581) Comfort automatic air conditioning |
GF83.10-P-2169P | |
| Dust filter, location/task/function | GF83.10-P-2142P | ||
| Activated charcoal filter, location/task/function | In vehicles up to 31.5.01 with code (581) automatic air conditioning or as of 1.6.01 with code (581) comfort automatic air conditioning | GF83.30-P-2118P | |
| Heater housing, location/task/design/function | On vehicles up to 23.4.04 without code (580) Air conditioning (or Tempmatic for USA) or without code (580) Automatic air conditioning or without code (581) Automatic air conditioning or without code (581) Comfort automatic air conditioning | GF83.20-P-2103P | |
| Air conditioner housing, location/task/design/function | On vehicles up to 31.5.01 with code (580) Air conditioning (or Tempmatic for USA) or as of 1.6.01 with code (580) Automatic air conditioning or as of 24.4.04 without code (581) Comfort automatic air conditioning | GF83.40-P-2105P | |
| Convenience air conditioner housing, location/task/design/function | In vehicles up to 31.5.01 with code (581) automatic air conditioning or as of 1.6.01 with code (581) comfort automatic air conditioning | GF83.40-P-2170P | |
| Air humidity sensor, location/task/design/function | On vehicles up to 31.5.01 with code (580) Air conditioning (or Tempmatic for USA) or as of 1.6.01 with code (580) Automatic air conditioning or as of 24.4.04 up to 28.6.06 without code (581) Comfort automatic air conditioning | GF83.30-P-2125P | |
| Multifunction sensor location/task/function | In vehicles up to 31.5.01 with code (581) automatic air conditioning or as of 1.6.01 with code (581) comfort automatic air conditioning | GF83.10-P-2148P |
